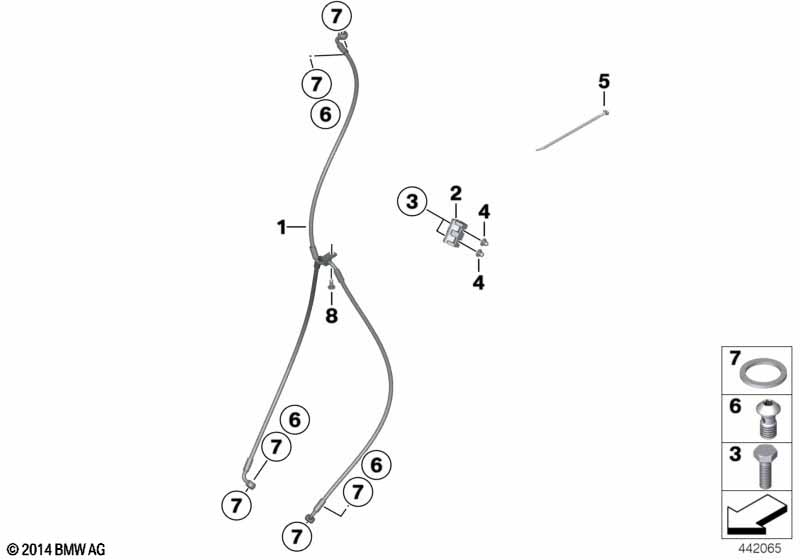

K25 (HP) HP2 Megamoto (0310,0320) Brake line, without ABS, front

Brake line, without ABS, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Anti block system (ABS)

X524A=No
01 Brake hose front 1 34327701381 $203.14 +core
02 Holder, brake hose 1 34327692462 $7.09
03 Hex bolt M5X18-A2 2 07119905621 $2.29
04 Cap nut M5 2 34327698439 $12.16
05 Cable tie L=200MM/B=3,6MM 1 61131367599 $0.43
06 Hollow bolt M10X1 3 12/2010 34327667316 $7.10
06 Hollow bolt M10X1 3 34329445087
07 Gasket ring A10X13,5-CU 6 07119963072 $0.11
08 Fillister head screw M6X16-A2-80 1 06327651204 $0.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
