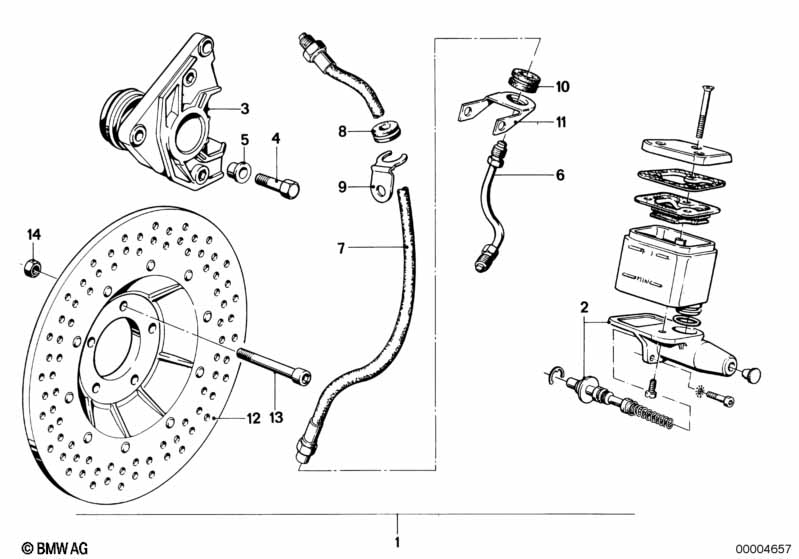

R45-R65LS..78-85 R65 Retrofit kit, double disc brake

Retrofit kit, double disc brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Cylinder with piston D=16MM 1 09/1980 09/1981 32722302365 $253.68 +core
03 Caliper right ATE 1 09/1980 09/1981 34111237258 $487.37 ENDED, +core
03 Caliper right BREMBO 1 09/1980 09/1981 34111238070 $454.80 ENDED, +core
04 Fillister-head screw M10X30-8.8-ZNS 2 09/1980 09/1981 07119901049 $1.30
05 Sleeve 3,5 2 34111238081 $8.25
05 Sleeve 2,9 2 34112301736 $4.60
05 Sleeve 1,2 2 09/1980 09/1981 34111238079 $8.25
05 Sleeve 2,35 2 09/1980 09/1981 34111238080 $8.25
05 Sleeve 1,7 2 09/1980 09/1981 34112301735 $4.60
06 Brake pipe right 1 34321238258 $8.34
07 Brake hose 470 LG. 1 34321239826 $91.16 ENDED
07 Brake hose 1 34321237261
08 Grommet 1 34321236462 $2.80
09 Hose clamp 1 34321237256 $18.26
10 Grommet 1 34321237259 $1.82
11 Hose clamp 1 34321237255 $1.39
12 Brake disk 1 34111236005 $435.50 +core
13 Fillister-head screw M8X70-8.8-ZNS 5 07119901038 $2.64
14 Self-locking hex nut M8-8-ZNS 5 07129964675 $0.56 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
