R45-R65LS..78-85 R65 Fork slider

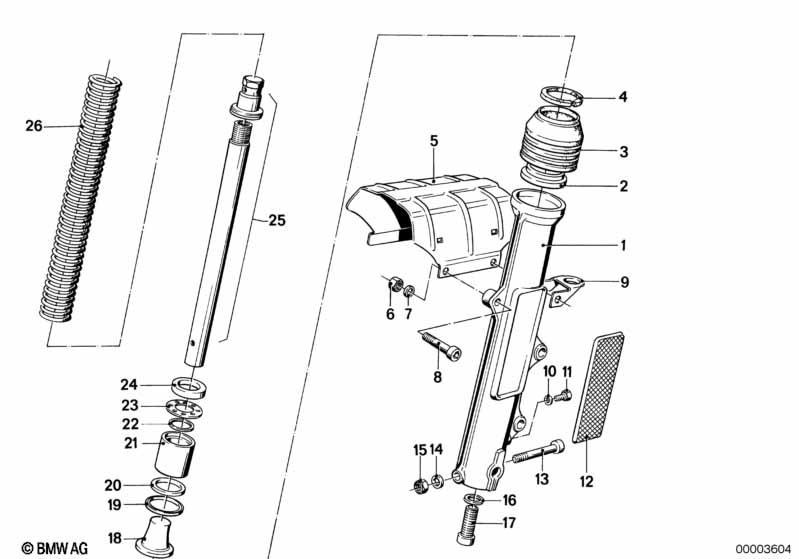

Fork slider
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Slider tube left 1 31421237199 +core
01 Slider tube right 1 31421237200 $212.89 +core
02 Gasket ring 2 31421230001 $10.64 ENDED
02 Gasket ring 2 31421232655
03 Cup 2 31421237205 $13.03
04 Felt 2 31421237213 $0.83
05 Bow 1 31421236555 $73.90
06 Self-locking hex nut M8 4 07/1985 07129946400 $0.35 ENDED
06 Self-locking hex nut M8-8-ZNNIV SI 4 07129905767 $0.27 ENDED
06 Self-locking hex nut M8-8-ZNNI SI 4 07129906196 $1.60
07 Washer 8,4 4 07119931697 $0.40
08 Fillister-head screw M8X45-8.8 4 07119901033 $1.19
09 Hose clamp 1 34321237256 $18.26
10 Gasket ring A6,5X9,5 2 07119963037 $0.57
11 Hex bolt M6X6 2 07119913405 ENDED
12 Side reflector, yellow, front 2 63141244529 $8.98
13 Fillister-head screw M8X60-ZNS 2 07119920152 $1.20 ENDED
13 ISA screw M8X60 ZNS3 2 07129904502 $2.80
14 Washer A8,4-ZNS 2 07119931019 $0.40
15 Hex nut M8-ZNS 2 07119922856 $0.56 ENDED
15 Hex nut M8-8-ZNS3 2 07/1985 07119904032 $0.16
15 Hex nut M8-8-ZNNIV SI 2 07119905515 $0.16
16 Gasket ring A12X15,5 AL 2 07119963130 $0.09
17 Fillister-head screw M12X30 2 07119919778 $3.02
18 Support for damper pipe 2 31422301015 $35.74
19 Lock Ring 30X1,2 2 09/1980 31421242646 $0.81
20 Shim 22X30X0,1 X 07119932656 ENDED
20 Shim 22X30X0,2 X 07119932657 $0.84
20 Shim 22X30X0,3 X 07119932659 $0.84
20 Shim 22X30X0,5 X 07119932660 $0.84
21 Valve housing 2 09/1980 11/1982 31422301016 $4.76 ENDED
21 Valve housing 2 09/1980 31422301885 $4.09
22 Valve washer 2 09/1980 31421242645 $1.36
23 Washer 2 31421237214 $1.36
24 Ring 2 31421237215 $1.66
25 Absorber 2 31421237209 $44.38 ENDED
26 Compression spring 2 31421237232 $87.51
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
