K26 (R 900 RT, R 1200 RT) R 1200 RT 05 (0368,0388) Switch housing, official vehicle

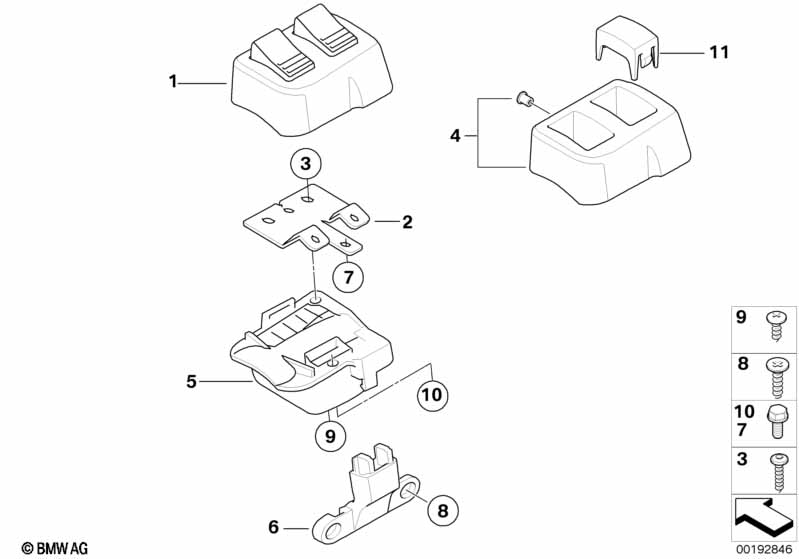

Switch housing, official vehicle
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Switch-housing upper section 2 61317694892 $12.65
02 Bracket for switch housing 2 61317694661 $30.76
03 Fillister head screw with collar M4X14 4 46637659479 $1.20
04 Upper section of switch housing, left 1 61317659653 $20.27 +core
04 Upper section of switch housing, right 1 61317659654 $20.27
05 Lower section of switch housing, left 1 61317659651 $11.48
05 Lower section of switch housing, right 1 61317660446 $11.48
06 Bracket for switch housing, left 1 61317653977 $9.15
06 Bracket for switch housing, right 1 61317653978 $9.15
07 Screw M4X12 4 63127682829 $1.54
08 Fillister head screw M5X12 4 46632313281 $0.87
09 Self tapping screw 3X12 2 65147651032 $1.28
10 Screw M8X30 2 07129904451 $2.90
11 Blind cap X 61317679708 $7.98
Notes
  • +core = plus core charge (possibility of a return of the old part)
