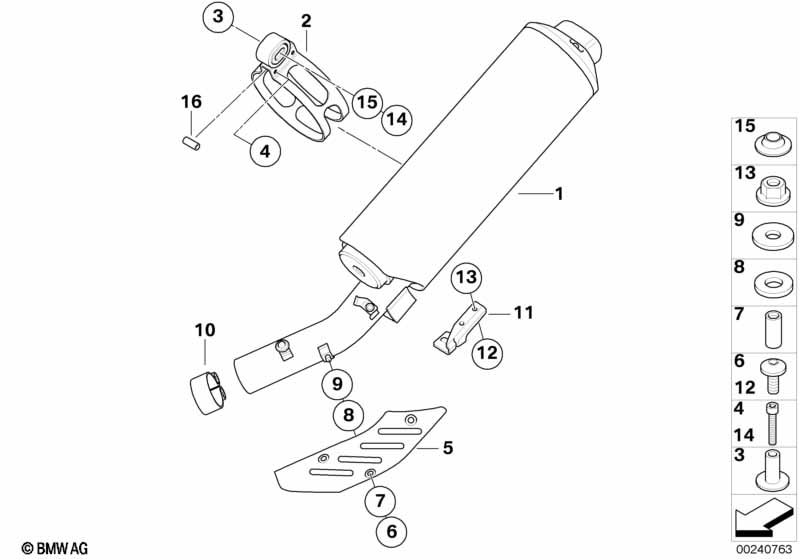

K25 (R 1200 GS Adventure) R 1200 GS Adve. 08 (0380,0390) Muffler system
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Exhaust system, chrome-plated |
X350A=Yes |
||||||||
| 01 | Rear muffler | CHROM | 1 | 18127694463 | $1180.01 | +core | |||
| For vehicles with Exhaust system, chrome-plated |
X350A=No |
||||||||
| 01 | Rear muffler | 1 | 18127694462 | $1135.33 | +core | ||||
| 02 | Bracket exhaust | 1 | 18127681299 | $138.55 | |||||
| 03 | Spacer sleeve | 1 | 18127673764 | $10.25 | |||||
| 04 | ISA screw | M6X30 | 2 | 07129905126 | $3.52 | ||||
| 05 | Tailpipe tip | 1 | 18117677322 | $119.19 | +core | ||||
| 06 | Fillister head screw | M5X12-A2-80 | 3 | 06327651211 | $0.96 | ||||
| 07 | Sleeve | 2 | 18127684062 | $6.94 | |||||
| 08 | Washer | 8-200 HV-A4 | 2 | 07119905231 | $4.98 | ||||
| 09 | Insulating washer | 2 | 18127684063 | $8.27 | |||||
| 10 | Clamp | D=54 | 1 | 18127694733 | $26.96 | ||||
| 11 | Stopper | 1 | 18127686889 | $34.39 | |||||
| 12 | Oval-head screw with anti-rotation lock | M6X16 | 2 | 46637659459 | $1.93 | ||||
| 13 | Plug-in nut | 2 | 18127657936 | $7.10 | |||||
| 14 | ISA screw | M8X45-A2-70 | 1 | 07129903415 | $2.43 | ||||
| 15 | Washer | 28X8,2X10 | 1 | 18127688981 | $12.18 | ||||
| 16 | Spacer sleeve | 2 | 18127684744 | $11.86 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
