K26 (R 900 RT, R 1200 RT) R 1200 RT 05 (0368,0388) Single parts, antenna ground plane

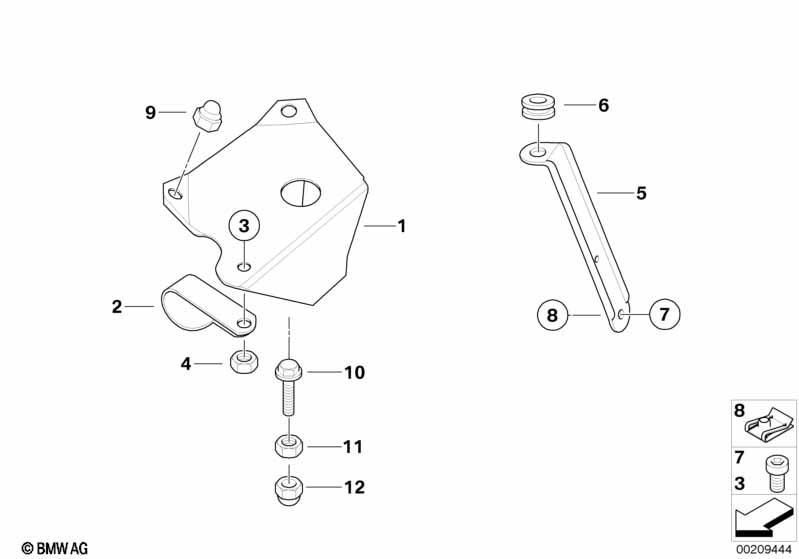

Single parts, antenna ground plane
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Bracket for antenna 1 65612317522
02 Clamp 1 65612317656
03 ISA screw M6X16-8.8-MK 1 07129905261 $0.96
04 Hex nut M6-A2-70 1 07129903343 $1.87
05 Support 1 65617699523
06 Grommet 1 46631236510 $1.40
07 Countersunk screw M5X12-U2-A2-70 1 07119905016 $2.56
08 Plug-in nut 1 18121341655 $1.80
09 Cap nut, chrome M6-8-CR 1 07119924324 $1.80
10 Hex bolt M8X16-A2-70 1 07119904921 $3.03
11 Hex nut M8-A2-70 1 07119904920 $1.29
12 Protection cap M8 1 46511234785 $0.60
