R 60, R 75 , R 80, /7, RT (76-85) R 80, R 80 /7 Crankshaft/Connecting rod/Mounting parts

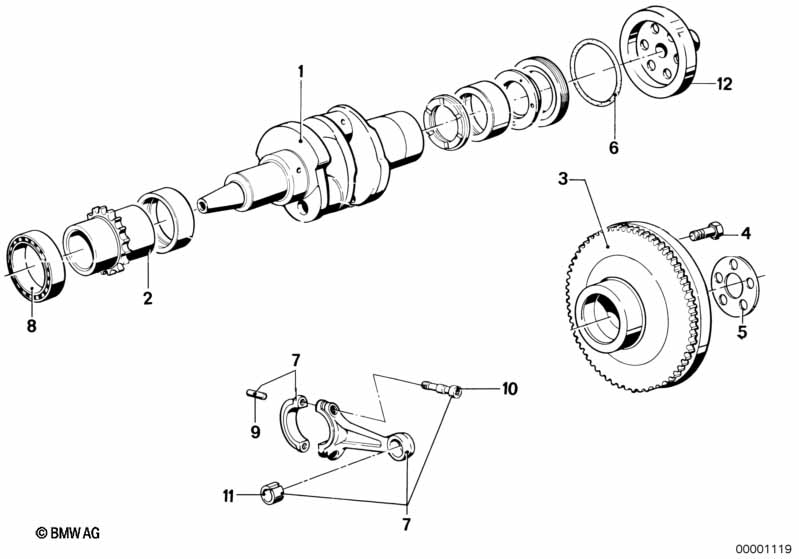

Crankshaft/Connecting rod/Mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Crankshaft M11X1,5 1 11211338171 $1140.73 +core
02 Sprocket 1 09/1978 11211250198 $141.11 +core
02 Sprocket 1 09/1978 11211335586 $47.58 +core
03 Flywheel 1 09/1980 11221336380 $432.41 +core
04 Hex bolt M11X1,5 5 11221262060 $2.52
06 Gasket ring 1 09/1978 11221337099 $5.54 ENDED
06 Gasket ring 59X3MM 1 09/1978 11221337093
07 Connecting rod 1XGELB 2 11241338152 $261.90 ENDED, +core, SI 112885359
07 Connecting rod 1XWEISS 2 11241338153 $261.90 +core, SI 112885359
08 Grooved ball bearing 160 07 1 07119981722 $29.91
09 Dowel pin 4 11241254819 $0.61
10 Connecting rod bolt 4 11241337553 $5.02
11 Connecting rod bush 2 11241338456 $13.81 ENDED
11 Connecting rod bush 2 11240618100 $2.47
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
