R 60, R 75 , R 80, /7, RT (76-85) R 80, R 80 /7 Camshaft, camshaft gear, timing chain

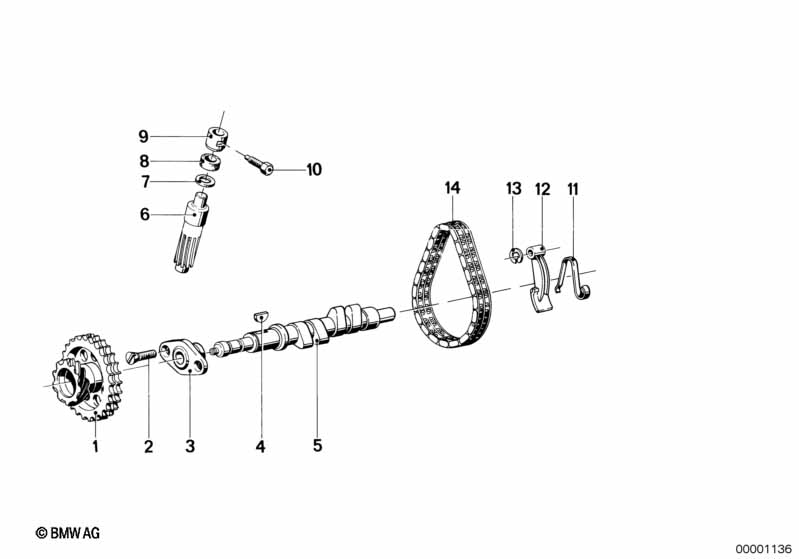

Camshaft, camshaft gear, timing chain
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i *FG Modell 79
01 Camshaft gear 1 09/1977 11311335241 $67.46
only in conjunction with
-- Hex bolt 2 09/1977 11311263853 $2.71
02 Hex bolt 2 11311263853 $2.71
only in conjunction with
-- Hex bolt 2 11311263853 $2.71
03 Flange 1 11311250251 $44.52
only in conjunction with
-- Hex bolt 2 11311263853 $2.71
04 Woodruff key 5X6,5 1 07119951480 $0.88
05 Camshaft Camshaft 308DEG 1 11311263001 $305.05 ENDED, +core
only in conjunction with
-- Rotor inner 1 11411335194 $25.79 +core
06 Helical gear wheel 1 09/1977 11311250187 $55.94 ENDED
07 Washer 1 09/1977 11311256928 $8.05 ENDED
08 Shaft seal 7X16X7 1 09/1977 11311256860 $9.02 ENDED
08 Shaft seal 7X16X7 1 09/1977 11311256861
09 Bush 1 09/1977 11311250186 $9.83
10 Clamping bolt M6X15 1 09/1977 07119911218 $0.38 ENDED
11 Spring 1 11311253188 $3.41
12 Chain tensioner 1 11311265455 $38.64 +core
13 Circlip D=6MM 1 07119932841 $0.38
14 Timing chain 3/8X7/32 1 11311250258 $50.29 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
