R 60, R 75 , R 80, /7, RT (76-85) R 80, R 80 /7 Single parts for oil pump

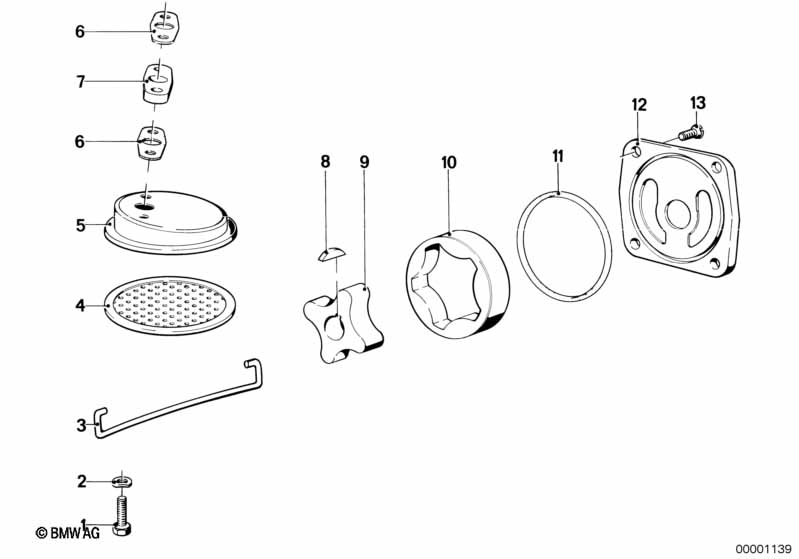

Single parts for oil pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hex bolt M6X28 2 09/1980 07119913499 $0.60
02 Wave washer B6 2 07119932099 $0.38
03 Wire-strap 1 11411252226 $2.23
04 Perforated plate 1 11411337509 $3.28
05 Oil pump strainer 1 09/1980 11411252223 $7.51
06 Gasket 2 11411265258 $3.41
07 Flange 1 09/1980 11411265590 $3.02 ENDED
08 Woodruff key 3X5MM 1 07119951440 $0.59
09 Rotor inner 3X5 1 09/1978 11411258971 $71.74 +core
09 Rotor inner 1 09/1978 11411335194 $25.79 +core
10 Rotor,outer 1 11411253293 $14.78 +core
11 O-ring 1 11411335895 $5.54
12 Oil pump cover 1 09/1980 11411260182 $47.27 +core
only in conjunction with
-- Hex bolt M6X16-8.8-ZNS3 4 09/1980 07119904357 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
