R 100, /7, /T, CS, RS, RT, S (76-84) R 100 RS Painted parts 546 gold

Painted parts 546 gold

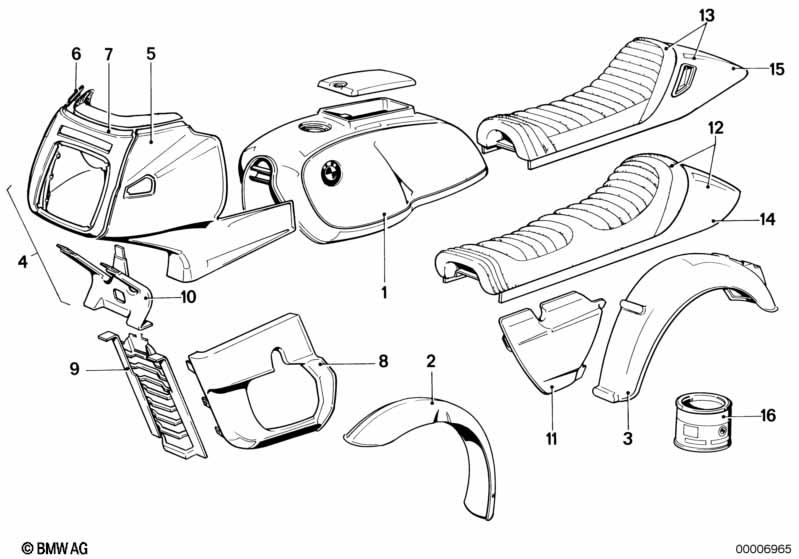

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Accent strip, dark brown
01 Fuel tank GOLD 1 16111237945 +core
02 Mudguard front GOLD 1 46611237946 ENDED
04 Trim panel upper part "RS" GOLD 1 46631237947 ENDED
05 Lateral trim panel left "RS" GOLD 1 46631238901 ENDED
06 Right lateral body part "RT" GOLD 1 46631238902 ENDED
07 Center part GOLD 1 46631238900 ENDED
08 Engine trim left GOLD 1 46631237948 ENDED
08 Engine trim right GOLD 1 46631237949 ENDED
08 Engine trim left protection bar GOLD 1 46631237950 ENDED
08 Engine trim right protection bar GOLD 1 46631237951 ENDED
09 Engine trim center GOLD 1 46631237956 ENDED
09 Engine trim center oil cooler GOLD 1 46631237964 ENDED
10 Covering lower part GOLD 1 46631238903 ENDED
11 Battery cover left MATT SCHWARZ 1 46631234852 ENDED
11 Battery cover right MATT SCHWARZ 1 46631235037 ENDED
For vehicles with
Official vehicles

=Yes
11 Battery cover right protection bar MATT SCHWARZ 1 46631235053 ENDED
11 Battery cover left protection bar MATT SCHWARZ 1 46631240100 ENDED
12 Double seat bench GOLD 1 52531240185 ENDED, +core
13 Single seat GOLD 1 52531237955 ENDED
14 Frame tandem seat bench GOLD 1 52531237943 ENDED
15 Frame single seat GOLD 1 52532301668 ENDED
16 Metallic paint set Gold 1000ML 046 X 51911237984 ENDED
16 Base paint, two-coat Gold 500ML 046 X 51910145902 ENDED
16 Ruling ink brown 250ML 110 X 51911237985 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
