259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Cylinder head cover/Mounting parts

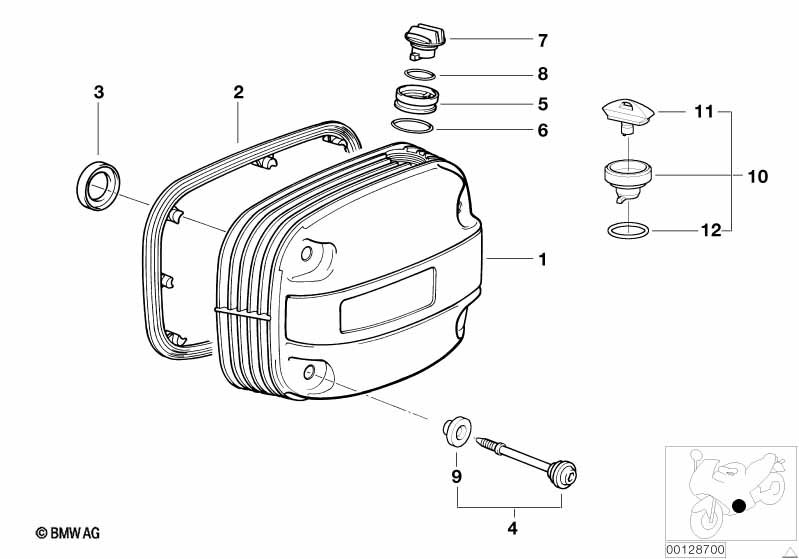

Cylinder head cover/Mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 CYLINDER HEAD COVER, chrome, left 1 11122317427 $328.74 +core
01 CYLINDER HEAD COVER, chrome, right 1 11122317428 $328.74 +core
01 Cylinder head cover with thread, left 1 11127676475 $172.70 +core
01 Cylinder head cover with thread, left 1 11127676475 $172.70 +core
01 Cylinder head cover with thread, right 1 11127676476 $161.58 +core
02 Exterior gasket 2 11121341708 $25.14 +core, SI 1106195(696)
03 Interior gasket 2 11121341707 $8.71 +core, SI 1106195(696)
04 Screw CR 8 11121341117 $12.77
04 Inner hex bolt with bush 8 11127654223 $13.77
05 Filler pipe 1 11147659578 $5.58
06 O-ring 1 11141340901 $1.32
07 Oil cover lid 1 11141340900 $4.52
08 O-ring 18X4 1 11141340902 $1.94
09 Rubber bush 8 11127654978 $3.39
10 Oil cover lid, lockable CHROM 1 71607674505 $60.31
11 Key 1 71607674506 $4.05
12 O-ring 17X4,5 1 71607685183 $2.67
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
