259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Cylinder head, gasket, camshaft cover

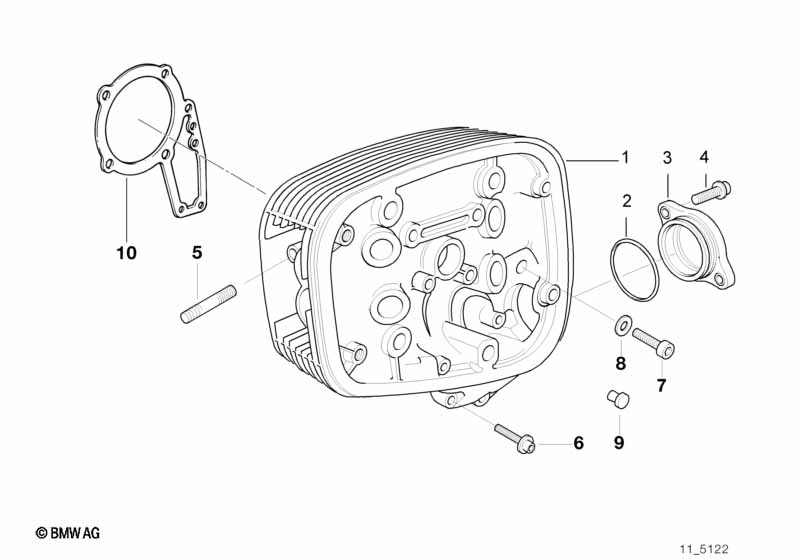

Cylinder head, gasket, camshaft cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
5 mm valve shaft
01 Cylinder head left 5MM 1 11121342691 +core
01 Cylinder head right 5MM 1 11121342692 +core
02 O-ring 2 11121341784 $5.44
03 Cover 2 11121341873 $13.73 SI 110679672
04 Fillister head with washer M6X16 4 46512311713 $1.19
05 Stud bolt M8X40 6 07129903964
07 Fillister head with washer M10X70 2 11121342244 $7.05
08 Washer 10,5X20X3 2 11121464026 $0.96
10 Cyl. head gasket, 3 components 2 11121342591 $56.62 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
