259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Timing gear - Intake valve/exhaust valve

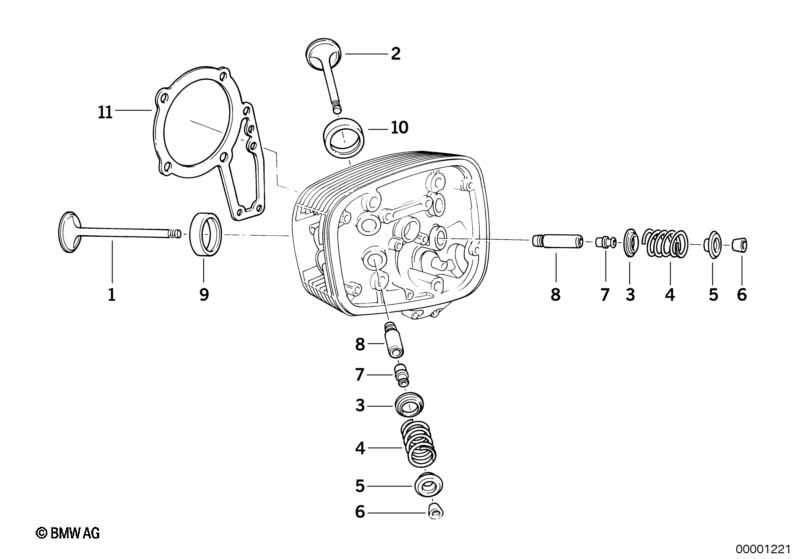

Timing gear - Intake valve/exhaust valve
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake valve D=32/5 4 11341340844 $57.95 +core
02 Exhaust valve D=27/5 4 11341340845 $109.11 +core
03 Spring pocket 8 11341340919 $1.94
04 Valve spring 8 11341341514 $11.23
05 Upper spring plate D=5 8 11341342971 $4.47
06 Valve collet D=5 16 11341340846 $1.34
07 Valve seal ring D=5 8 11341340849 $6.12
08 Valve guide inlet D=12,7/D=5MM 4 11121340838 $12.08
08 Valve guide exhaust D=12,7/D=5MM 4 11121340843 $12.08
09 Valve Seat Ring Intake 4 11121341515
10 Valve Seat Ring Exhaust 4 11121341516
11 Cyl. head gasket, 3 components 2 11121342591 $56.62 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
