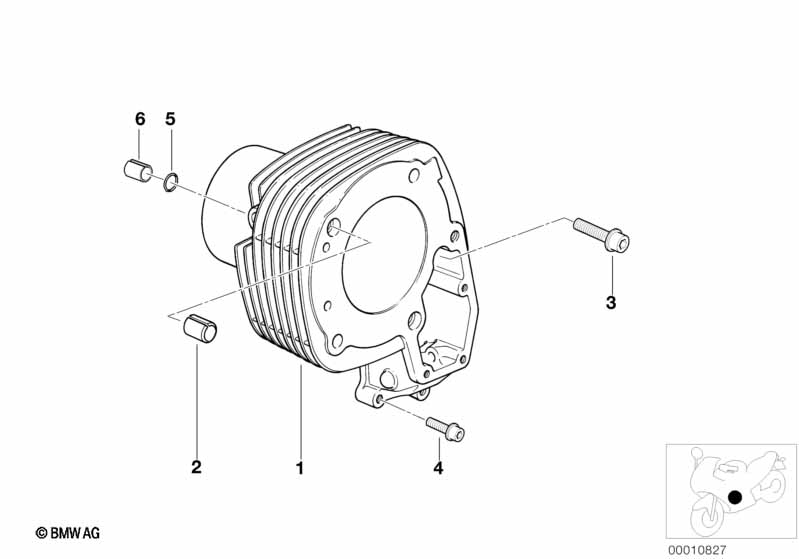

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Cylinder

Cylinder
No. Description Supp. Qty  From   Up To  Part Number Price Notes
only in conjunction with A/B pistons
01 Cylinder left A/B H=80,65 1 11117667105 +core
01 Cylinder right A/B H=80,65 1 11117667106 +core
02 Dowel D=12,5MM 4 11121726241 $1.62
03 Fillister head with washer M8X55-Z3-8.8 ZN 1 07119919820 $2.03 ENDED
03 Fillister head with washer M8X30-Z3-8.8-ZN 1 07119920137 $0.62
04 Fillister head with washer M6X35-ZNNIV SI 5 07119906058
Only for right side
04 Fillister-head screw with coating M6X35-Z3-8.8-ZN 1 11117658018 $1.19
05 O-ring 10,5X1,5 4 11111342242 $2.13
06 Dowel D=10,5MM 4 11121726238 $1.62
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
