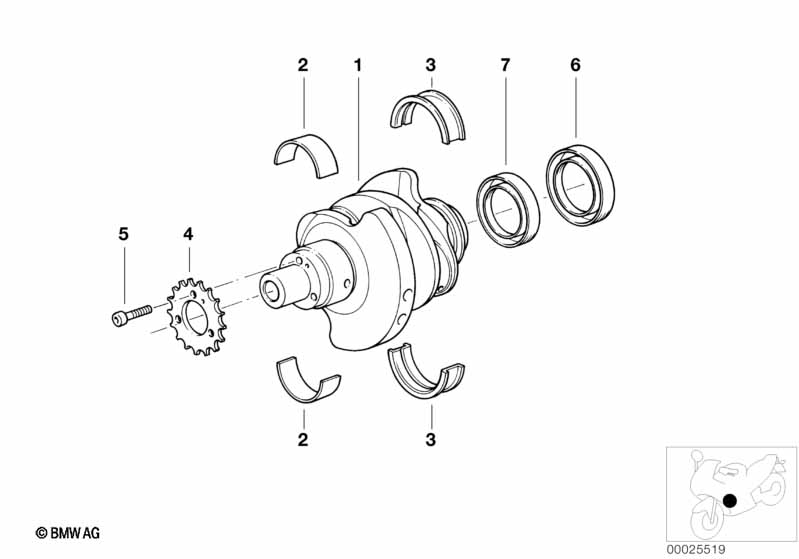

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Crankshaft attaching parts

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Crankshaft		1			11211342275	$1205.90		+core
02	Bearing shell yellow		2			11211340625	$20.84
02	Bearing shell green		2			11211340626	$20.84
02	Bearing shell yellow	+0,25	2			11211341573	$20.84
02	Bearing shell green	+0,25	2			11211341574	$20.84
03	Guide-bearing Shell yellow		2		07/2005	11217675273	$53.09		ENDED
03	Guide-bearing Shell yellow		2			11218555236
03	Guide-bearing Shell yellow	+0,25	2		07/2005	11217678812	$53.09
03	Guide-bearing Shell yellow	+0,25	2			11218555238
03	Guide-bearing Shell white		2			11217675275	$53.09		ENDED
03	Guide-bearing Shell green	+0,25	2			11217678813	$53.09
03	Guide-bearing Shell white	+0,25	2			11217678814	$53.09
03	Guide-bearing Shell green		2			11218555237
04	Sprocket		1			11311340586	$35.88		+core
05	ISA screw	M6X16-8.8-ZNNIV	3			07129905536	$0.64
06	Shaft seal	65X85X7	1			11111341087	$32.56
07	Shaft seal	65X83X7	1			11111341135	$32.56

Notes

• +core = plus core charge (possibility of a return of the old part)
• ENDED = the part has been discontinued (no longer available).
