259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Camshaft supporting bracket

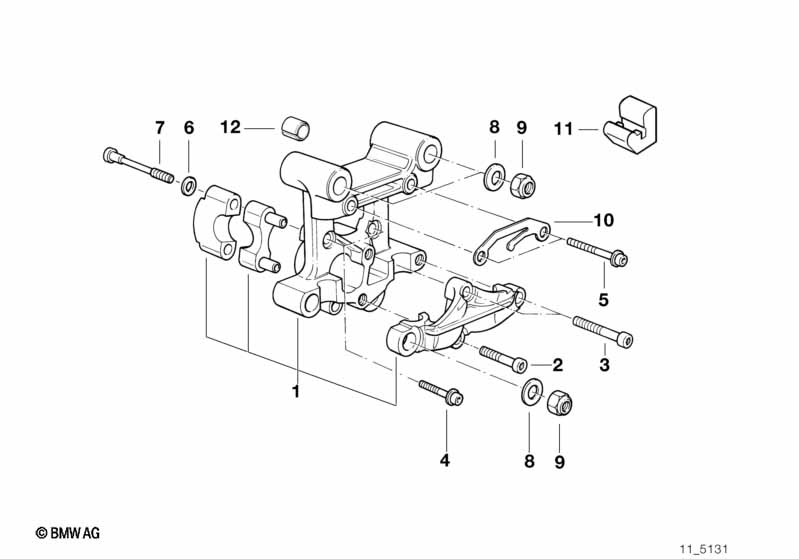

Camshaft supporting bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left camshaft supporting bracket 1 11337670599 $234.52 +core
01 Right camshaft supporting bracket 1 11337670600 $234.52 +core
02 Torx bolt M8X30 2 11331340745 $2.58
03 Torx bolt M8X40 4 11337713044 $2.80
05 Fillister head with washer M6X60 4 07119920131 $2.80
06 Shim 8,2X14X1,2 4 11311460923 $0.40
07 Torx bolt M8X65 4 11331340743 $2.80
08 Washer 10,5X20X3 8 11121464026 $0.96
09 Hex nut M10 8 11127650402 $1.28
10 contact spring 2 11337677901 $2.13
11 Rubber buffer 2 11331341619 $6.71
12 Dowel D=12,5MM 2 11121726241 $1.62
Notes
  • +core = plus core charge (possibility of a return of the old part)
