259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Lubrication system-Oil filter

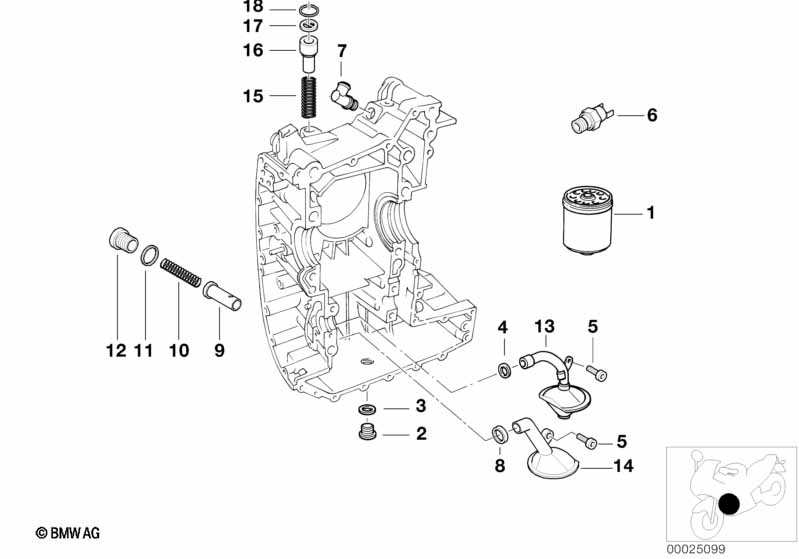

Lubrication system-Oil filter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil filter 1 11421460845 $24.34
02 Screw plug M16X1,5 1 07119902292 $2.83
03 Gasket ring A16X20-AL 1 07119963252 $0.57
04 O-ring 22X2,50 1 11411341597 $2.46
05 Fillister-head screw M6X20-Z2 2 07119900635 $0.28 ENDED
05 Fillister-head screw M6X25-Z2 2 07119901988
For vehicles with
Additional fan
and
Official vehicles

X536A=Yes

=Yes
06 Temperature switch 1 17211342174 $71.56 +core
07 Vent pipe 1 11111341276 $12.89
08 O-ring 20X2,5 1 11411342499 $2.67
09 Piston 1 11411340780 $13.44 +core
10 Compression spring 1 11411460259 $1.16
11 Gasket ring A20X24-CU 1 07119963342 $0.24
12 Screw plug 1 11411460483 $6.44
13 Suction tube lubricating oil 1 11411342500 $12.56
14 Intake manifold, cooling 1 11411342606 $13.44
15 Compression spring 1 11441342571 $1.84
16 Expanding element 95CEL 1 11411342761 $44.23
17 Base 1 11441341041 $2.71
18 O-ring 19X4 1 17221342487 $2.67
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
