259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Single parts for oil pump

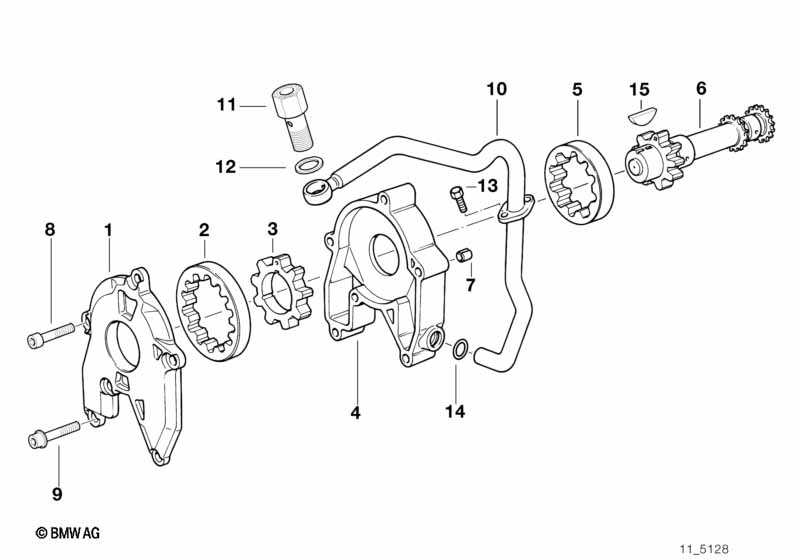

Single parts for oil pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil pump cover 1 11411341124 $32.59 +core
02 Exterior rotor, cooling oil 1 11411342630 $29.29 +core
03 Interior rotor, cooling oil 1 11411342631 $34.58 +core
04 Oil pump housing 1 11411341039 $54.65 +core
05 Exterior rotor 1 11411340137 $29.29 +core
06 Auxiliary shaft 1 11311341118 $363.17 +core
07 Dowel D=8,5X9MM 2 11121726242 $1.07
08 Fillister-head screw M6X45 4 07119920023 $1.19
09 Fillister head with washer M6X50-Z3-8.8 2 07119900208 $1.19
10 Cooling oil line 1 11511342710 $62.51 +core
See Service Information
11 Ventilation valve 1 11511342248 $38.98 +core, SI 1106996(732)
12 Gasket ring A14X18-AL 2 07119963200 $0.38
13 ISA screw M6X16-8.8-ZNNIV 2 07129905536 $0.64
14 O-ring 1 11511340738 $1.67
15 Woodruff key 3X3,7 1 07119951430 $1.21
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
