259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Starter single parts

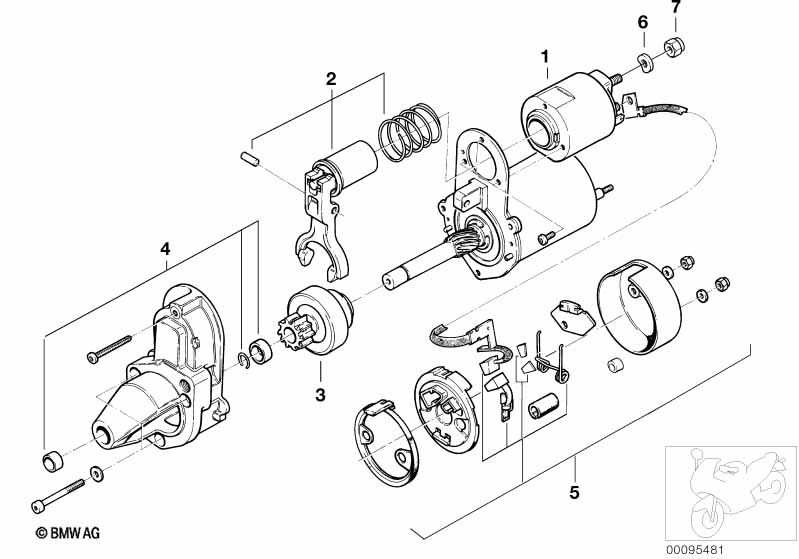

Starter single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Solenoid switch 1 12412306168 $156.07 +core
only applies to
-- Starter X 12412306700 $369.50 +core
02 Clutch rel.fork lever 1 12412306169 $25.11
only applies to
-- Starter X 12412306700 $369.50 +core
03 Starter pinion 1 12412306239 $156.07 +core
only applies to
-- Starter X 12412306700 $369.50 +core
04 Repair kit starter motor 1 12411244611 $16.73
only applies to
-- Starter X 12412306700 $369.50 +core
05 Carbon brush set 1 61312306015 $40.08
only applies to
-- Starter X 12412306700 $369.50 +core
06 Spring washer 1 12411244623 $1.09
07 Hex nut M8-8 CU 1 12411244622 $2.61
Notes
  • +core = plus core charge (possibility of a return of the old part)
