259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Alternator / voltage regulator

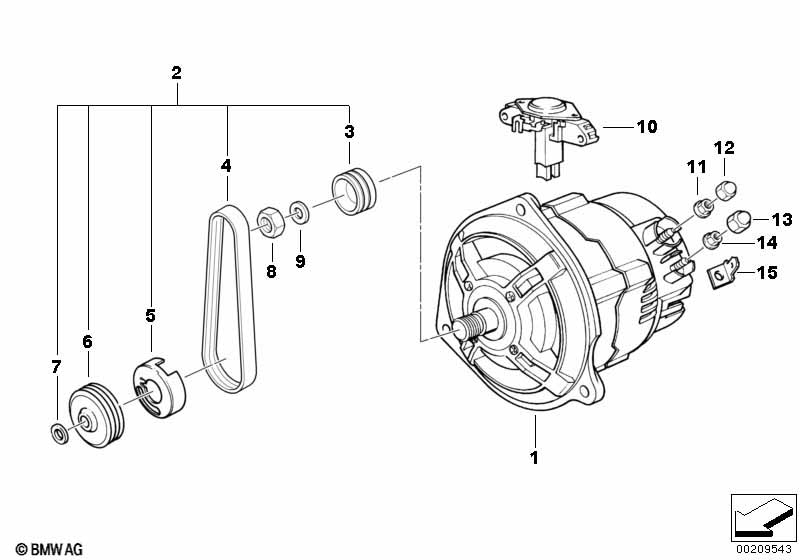

Alternator / voltage regulator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Alternator 50A 1 12312306020 $970.18 +core
02 Set of pulleys with ribbed v-belts 1 12311342086 $134.99 +core, SI 1202095(700)
03 Pulley alternator D=58,7MM 1 12311342075 $41.25 +core
04 Ribbed v-belt 4PK611 1 12311341779 $27.65 +core
05 Rotor 1 12141342853 $11.52 +core
06 Pulley, crankshaft 1 12311341912 $42.53
07 Washer 1 11311341572 $2.96
08 Hex nut M16X1,5 1 12311459814 $2.61
09 Washer 16-200-HV-ZNS3 1 07119906046 $0.92
10 Voltage regulator 1 12311739365 $124.68 +core
11 Hex nut M8 1 07149125856 $1.33
12 Protection cap M8 1 46511234785 $0.60
13 Cap M5 1 12312306324 $0.58
14 Flange nut M5 1 07141732625 $0.14
15 Flat-type connector 1 12312306358 $1.16
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
