259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Fuel distributor/Pressure regulator

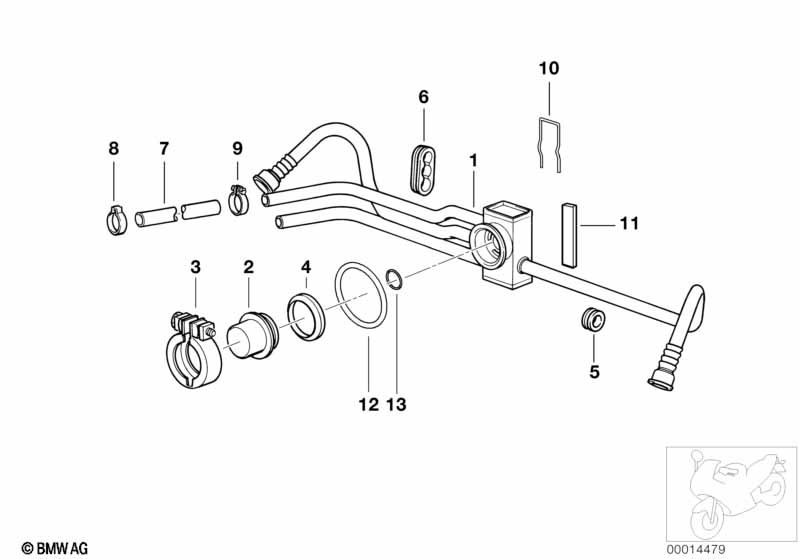

Fuel distributor/Pressure regulator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel distributor 1 13537664855 $126.07 +core
02 Pressure regulator 1 13531465106 $91.17 +core
only in conjunction with
-- O-ring 5X1,5 1 13531465193 $1.67
05 Grommet 1 13531341283 $2.03
06 Grommet, right 1 13531341284 $2.23
07 Fuel hose 8X13MM X 16121180409 $20.43
08 Hose clamp 13,1-15,3 2 16121176918 $1.76
09 Hose clamp D=12MM - 13,5MM 2 17121461500 $2.54
10 Clamping spring 1 13531341694 $4.84
11 Gasket 60X15X4 1 62211459439 $5.80
12 O-ring 5X1,5 1 13531341066 $2.02
12 O-ring 5X1,5 1 13531465193 $1.67
13 O-ring 20X2,5 1 13531341067 $2.39
Notes
  • +core = plus core charge (possibility of a return of the old part)
