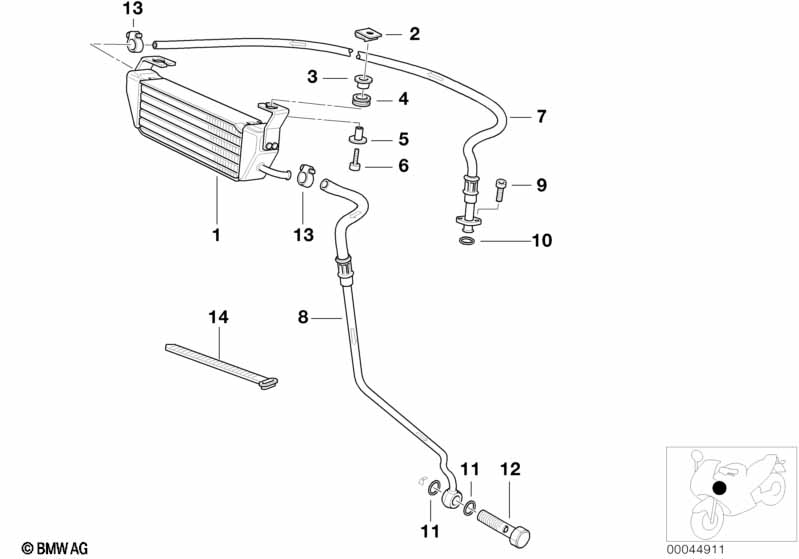

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Oil cooler/Oil cooling pipe

Oil cooler/Oil cooling pipe
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler 1 17212325525 $316.06 +core
02 Cage nut M6-6-ZNS3 2 12/1997 07129904886
03 Nut holder 2 46631455425 $2.80
04 Rubber grommet 2 46631451277 $1.40
05 Bush 25X6.4X10-ZNS3 2 46631451275 $1.18
06 Fillister-head screw M6X25 2 11141460678 $0.87
07 Oil cooling pipe inlet 1 17221342642 $83.81 +core
08 Silver oil pipe outlet 1 17221342644 $134.10 +core
08 Black oil pipe outlet 1 17221342645 ENDED, +core
09 ISA screw M6X16-8.8-ZNNIV 2 07129905536 $0.64
10 O-ring 19X4 1 17221342487 $2.67
11 Gasket ring A16X20-AL 2 07119963252 $0.57
12 Hollow bolt M16X28 1 32416852470
13 Hose clamp L15-19 2 07129952107 $0.93
13 Clamp FBS 19/12 2 17221342708 $2.65
14 Cable tie L=292MM/B=4,8MM 4 61131377134 $0.77
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
