259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Clutch - single parts

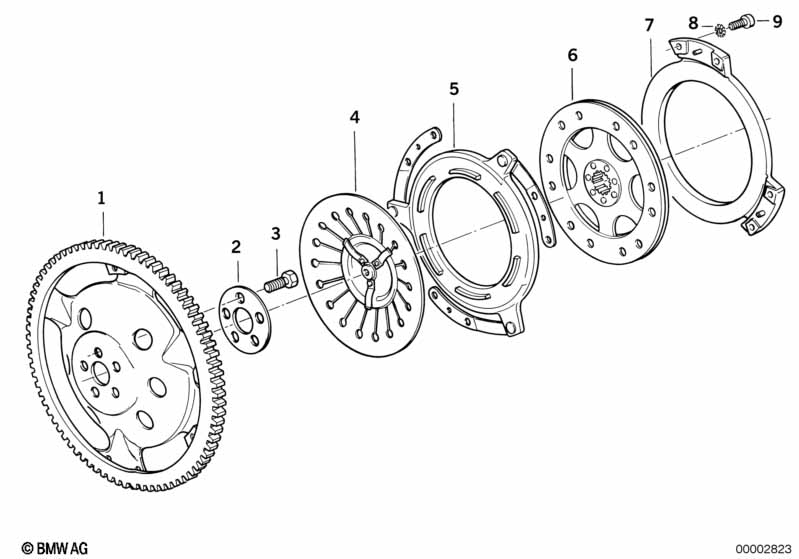

Clutch - single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Clutch housing 1 21212330385 $319.38 +core
02 Washer 1 21212331118 $13.34
03 Collar screw 5 11221341472 $3.04
04 Diaphragm spring 1 21211338508 $69.81 +core
05 Pressure plate 1 21212325863 $121.21 +core
06 Clutch plate KD-SCHEIBE 1 21217670453 $203.40 +core, SI 2100896(737)
07 Housing cover 1 21212330024 $209.41 +core
08 Washer A7,4 6 21211242377 $0.81
09 Screw 6 21211454417 $2.15
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
