259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Clutch control

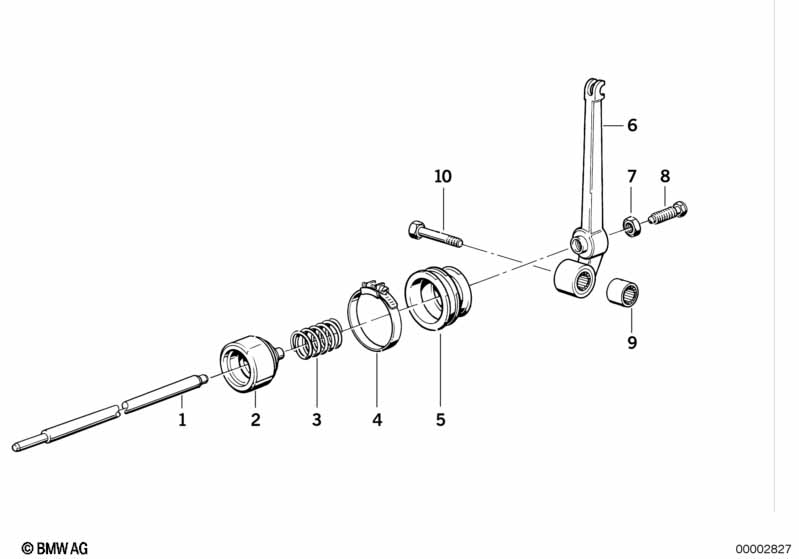

Clutch control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rod L=258MM 1 21527659112 $53.27 +core
only in conjunction with
-- Feltring 1 23211230440 $3.97
02 Piston 1 23131464167 $78.95 +core
03 Spring 1 23131241849 $4.50
04 Clamp D=40 1 23131241872 $3.48
05 Cup 1 23131338731 $25.22
06 Clutch lever 1 23131340829 $214.56 +core
07 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
08 Adjusting screw M8X37 1 23131341765 $15.56
09 Needle sleeve 12X18X16 1 23131238422 $13.04
Notes
  • +core = plus core charge (possibility of a return of the old part)
