259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) 5-gear transmission

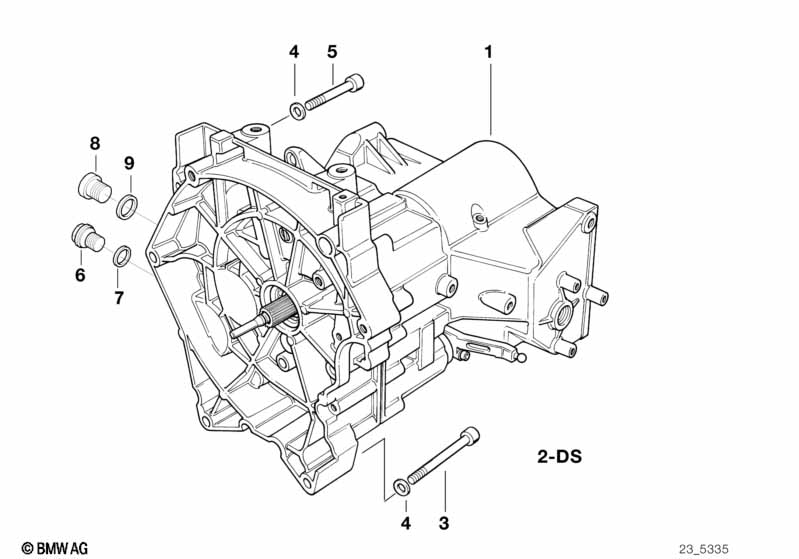

5-gear transmission
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. 5 speed gearbox, silver M 97 1 23002325620 $3769.60 ENDED, +core
only in conjunction with
-- Cap 1 23111451549 $0.87
01 Exch. 5 speed gearbox, black M 97 1 23002325621 $3769.60 ENDED, +core
only in conjunction with
-- Cap 1 23111451549 $0.87
02 Gasket set five speed gearbox 1 23001341764 $89.15 ENDED
03 Fillister-head screw M8X75-8.8-ZNS3 2 07119900199 $2.80
04 Washer 8,4 6 07119931697 $0.40
05 ISA screw M8X55-8.8-ZNNIV 4 07129906694
06 Screw plug, magnetic M14X1,5-ZNS 1 23107651450 $30.40
07 Gasket ring A14X18-AL 1 07119963200 $0.38
08 Screw plug M18X1,5-ZNNIV 1 07119905428 $11.47
09 Gasket ring A18X22 1 07119963300 $0.57
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
