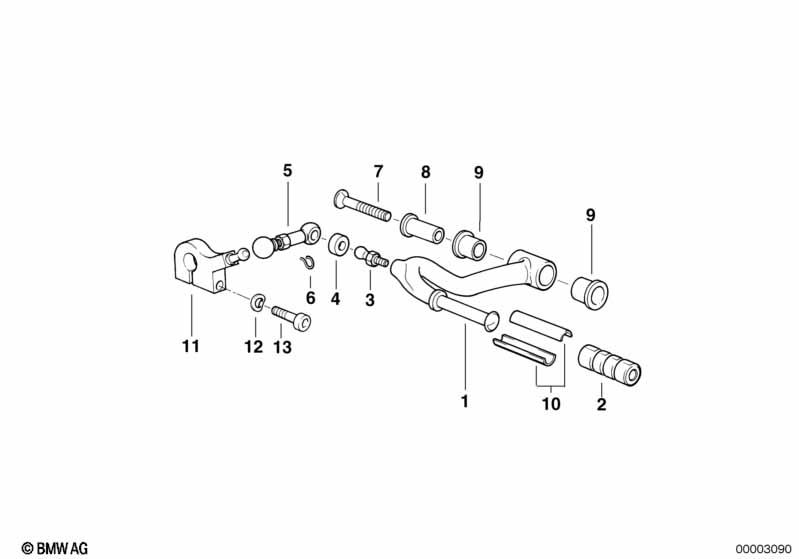

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) External gearshift parts/Shift lever

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Shift lever		1			23411341628	$149.76		+core
02	Pad for foot-operated shift lever		1			23417680761	$7.30
03	Ball pin		1			07119901736	$4.67
04	Plastic bush		2			23417650149	$1.20
05	Selector rod	L=110MM	1			23411341676	$49.21
06	Safety clip	S10	1			07119987611	$0.25
07	Countersunk head screw	M10X50-8.8	1			46521454158	$3.02
08	Sleeve		1			23411340413	$16.69
09	Bush		2			23411341344	$6.80
10	Bearing shell		2			23418524155
10	Bearing shell		2			23418524155
11	Shift lever		1			23411341675	$82.42		+core
12	Wave washer	B6	1			07119932099	$0.38
13	ISA screw	M6X30-8.8-ZNNIV	1			07129905386	$0.86

Notes

• +core = plus core charge (possibility of a return of the old part)
