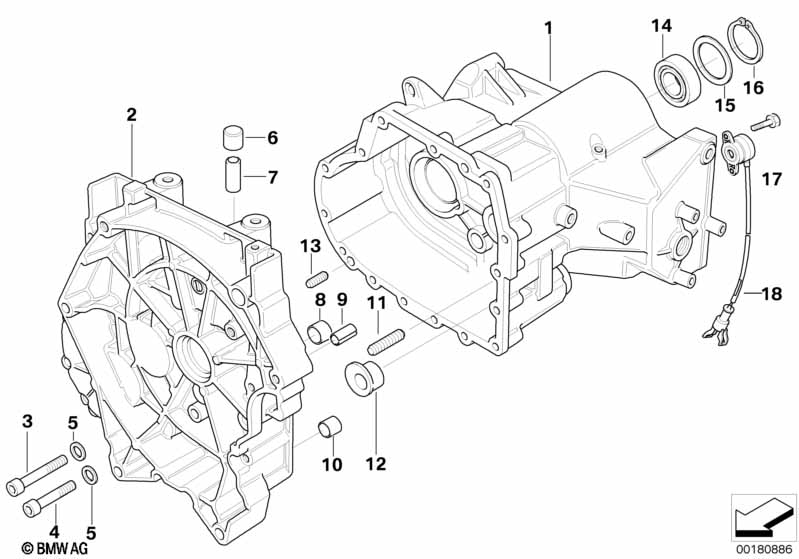

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Transmission housing/mounting parts

Transmission housing/mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission housing,black,Clean Bearing 1 23002325218 $1209.24 +core
01 Transmission hous.,silver,Clean Bearing 1 23102325217 $1209.24 +core
02 HOUSING COVER, silver, Clean Bearing 1 23002325220 $442.68 +core
02 HOUSING COVER, black, Clean Bearing 1 23002325221 $442.68 +core
03 Fillister-head screw M6X65-8.8-ZNS3 11 07119903008 $2.25
04 Fillister-head screw M6X50-8.8-ZNS 4 07119919930 $1.74
05 Wave washer B6 15 07119932099 $0.38
06 Cap 1 23111451549 $0.87
07 Sleeve 1 23111341615 $7.59
08 Bush 1 23111451135 $3.61
09 Bush 1 23111451013 $1.71
10 bush for selector rod 1 23111451137 $11.34
11 Dowel pin 6X40 1 07119900830 $3.78
12 bearing bush for selector rod 1 23121340325 $36.16
13 Dowel pin 6X24 2 07119942526 $1.93
14 Grooved ball bearing 12X28X8 1 23121340327 $25.14
15 Support 20X28X2 1 23211341739 $5.02
16 Lock Ring 28X1,2 1 23211341738 $5.48
16 Lock Ring 28X1,3 1 23211341737 $5.48
16 Lock Ring 28X1,4 1 23211341736 $5.48
16 Lock Ring 28X1,5 1 23211341735 $5.48
17 Hex bolt M4X25 8.8ZN 2 07119913097 $1.59 ENDED
18 Gear position indicator switch 1 61312306519 $121.79 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
