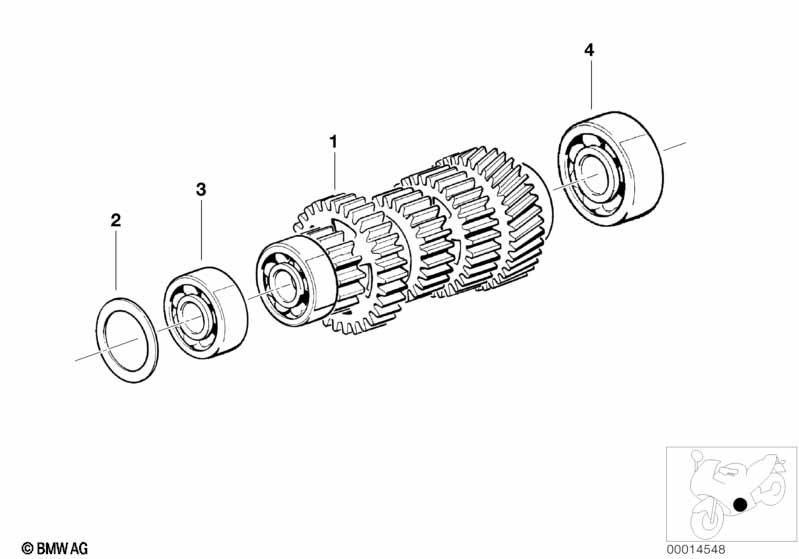

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) 5-speed trans. intermediate shaft

5-speed trans. intermediate shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intermediate shaft M97 D=47/59 1 08/1996 23202325479 $1209.25 ENDED, +core
02 Shim 37X47X0,30 1 23111451138 $9.78
02 Shim 37X47X0,35 1 23111341431 $9.78
02 Shim 37X47X0,40 1 23111451139 $9.78
02 Shim 37X47X0,45 1 23111341432 $9.78
02 Shim 37X47X0,50 1 23111451140 $9.78
02 Shim 37X47X0,55 1 23111341433 $9.78
03 Clean Bearing grooved ball bearing 17X47X14 1 23122325521 $53.32 +core
04 Clean Bearing grooved ball bearing 17X59X20 1 23122325522 $132.79 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
