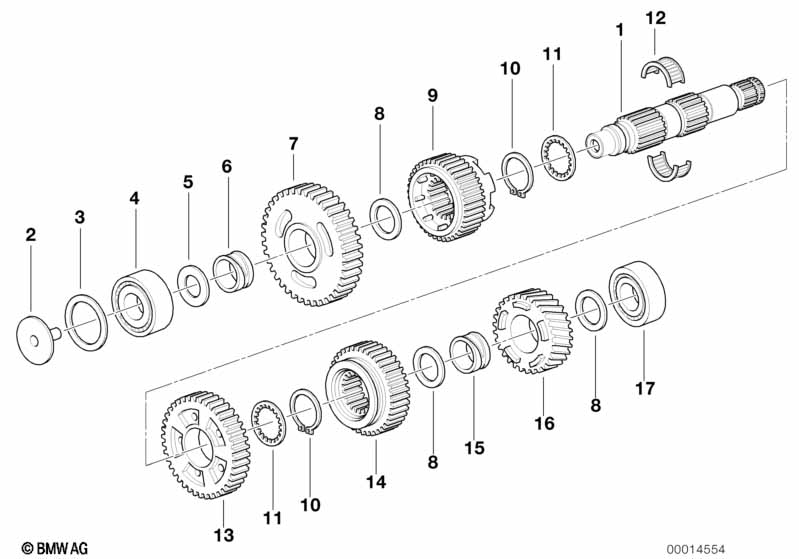

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) 5-speed trans. output shaft M 97

5-speed trans. output shaft M 97
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Output shaft M97 1 23211340349 $429.10 +core
02 Oil guide 1 23111340426 $12.18
03 Shim 37X47X0,30 1 23111451138 $9.78
03 Shim 37X47X0,35 1 23111341431 $9.78
03 Shim 37X47X0,40 1 23111451139 $9.78
03 Shim 37X47X0,45 1 23111341432 $9.78
03 Shim 37X47X0,50 1 23111451140 $9.78
03 Shim 37X47X0,55 1 23111341433 $9.78
04 Grooved ball bearing 20X47X14 1 23122330176 $30.70
05 Support 20X35X1,6 1 23212330083 $6.95
06 Bush 1 23211451078 $82.69
07 Gear wheel 1st gear 1 23211451079 $311.22 +core
08 Shim 25X35X2,0 1 23211451144 $15.30
08 Shim 25X35X1,9 1 23211451902 $14.84
08 Shim 25X35X1,8 1 23211451903 $14.84
08 Shim 25X35X1,7 1 23211451904 $14.84
08 Shim 25X35X1,6 1 23211451905 $14.84
09 Gear wheel 4th gear 1 23211451077 $373.45 ENDED, +core
10 Lock Ring 31X1,5 2 23211451154 $3.33
11 Washer 2 23211451072 $4.07
12 Needle cage 27X33X17 1 23311451898 $30.26
13 Shift gear for 2nd. gear 1 23222325523 $295.64 +core
14 Gear wheel 3rd gear 1 23211451073 $322.32 ENDED, +core
15 Bush 1 23211451074 $82.69
16 Shift gear for 5th. gear 1 23222325524 $313.45 +core
17 Clean Bearing grooved ball bearing 25X52X15 1 23122325518 $57.10 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
