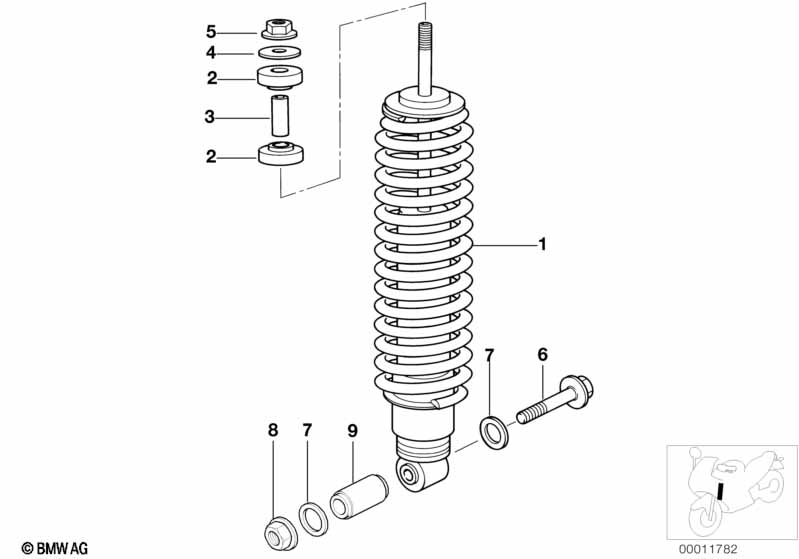

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Spring strut, front
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring strut, front | 1 | 31422312102 | $491.11 | +core | ||||
| 02 | Bush | 2 | 31422311994 | $3.02 | |||||
| 03 | Pipe | 1 | 31422311993 | $4.63 | |||||
| 04 | Washer | 10-200 ZNS3 | 1 | 07119904209 | $1.16 | ||||
| 04 | Washer | 10-200 ZNS3 | 1 | 07119904209 | $1.16 | ||||
| 05 | Hex nut | M10X1,25-ZNS3 | 1 | 07119906226 | $1.87 | ||||
| 06 | Hexagon screw with flange | M10X1,25X48 | 1 | 33548523427 | |||||
| 08 | Hex nut | M10X1.25-ZNNIV | 1 | 07119907049 | |||||
| 09 | Rubber Mounting | 1 | 31422331784 | $19.86 |
Notes
- +core = plus core charge (possibility of a return of the old part)
