259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Trailing arm

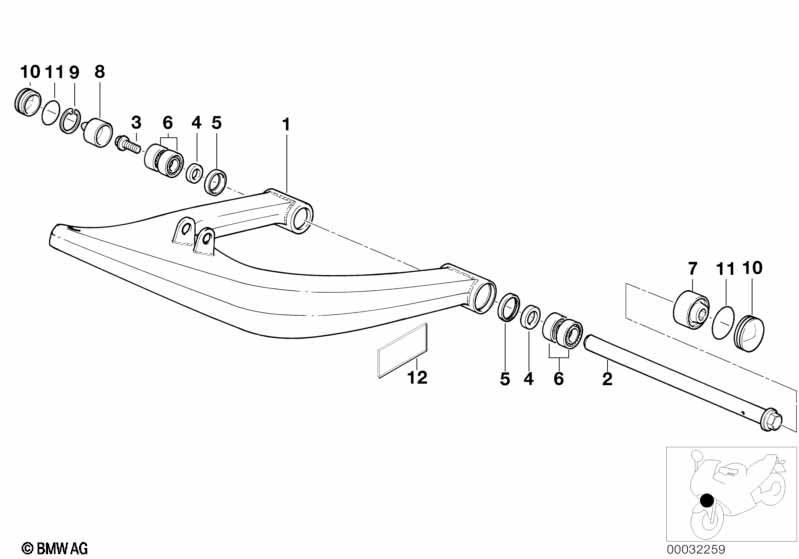

Trailing arm
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Silver trailing arm 1 31422311849 $616.84 ENDED, +core
01 Black trailing arm 1 31422345526 $616.84 +core
02 Axle 1 31422314501 $71.29
03 Hex bolt M12X20-8.8-ZN 1 07119900029 $2.36
04 Spacer 2 31422314058 $8.99
05 Shaft seal 2 31422314426 $7.85
06 Grooved ball bearing 17X40X12 4 31422314724 $18.01 +core
08 Cap right 1 31422314303 $2.93
09 Lock Ring 42X1,75 1 07119905077 $4.78
10 Covering cap 2 31422314304 $2.90
11 O-ring 2 31422314981 $2.67
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
