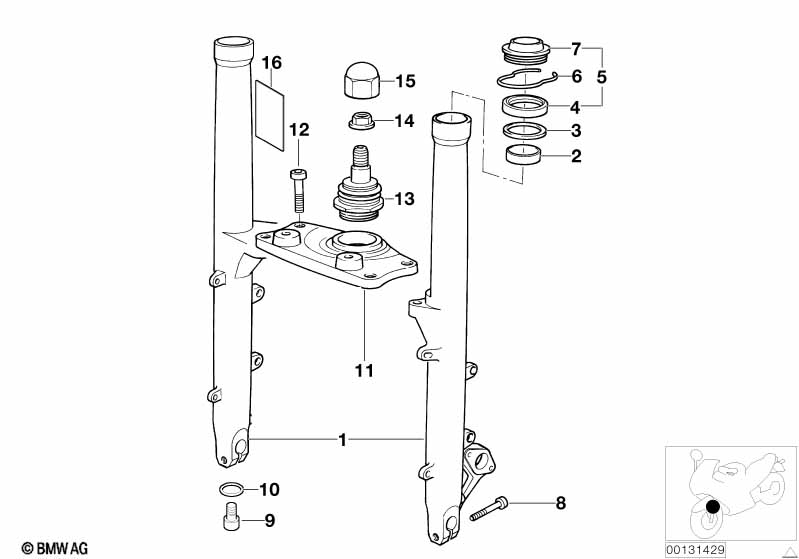

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Fork slider/lower fork bridge
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Slider tube left | 1 | 31422311981 | $601.18 | +core | ||||
| 01 | Slider tube right | 1 | 31422311982 | $601.18 | +core | ||||
| 02 | Bush | 2 | 31422311986 | $9.58 | |||||
| 03 | Shim | 2 | 31422314630 | $10.72 | |||||
| 04 | Shaft seal | 2 | 31422311988 | $14.60 | |||||
| 06 | Lock Ring | 2 | 31422311989 | $2.39 | |||||
| 07 | Dust cap | 2 | 31422311980 | $13.96 | |||||
| 08 | Fillister-head screw | M8X40-8.8-SW | 2 | 31422312035 | $4.52 | ||||
| 09 | Fillister-head screw | M8X18-8.8-ZNS3 | 2 | 31422312711 | $1.39 | ||||
| 10 | O-ring | 2 | 31422312714 | $1.67 | |||||
| 11 | Lower fork cross brace | 1 | 31422320047 | $366.54 | +core | ||||
| 12 | Fillister-head screw | M8X35-8.8-SW | 4 | 31422312034 | $1.42 | ||||
| 13 | Ball joint | 1 | 31422311409 | $140.92 | +core | ||||
| 14 | Collar nut | M14X1,5 MK | 1 | 31422330996 | $6.85 | ||||
| 15 | Cover, black | 1 | 31427658697 | $0.87 |
Notes
- +core = plus core charge (possibility of a return of the old part)
