259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Upper fork cross brace

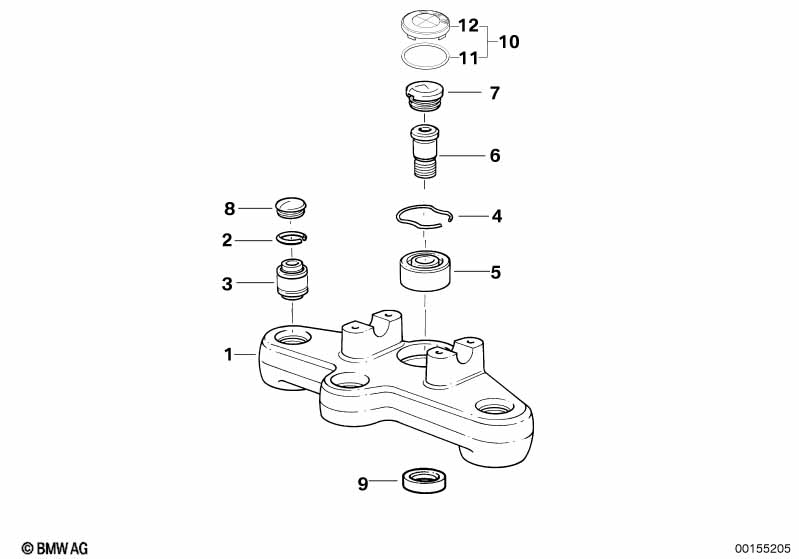

Upper fork cross brace
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Upper fork cross brace with mount 1 31422314505 $706.60 +core
02 Snap ring 26X1,2 4 31422331942 $1.09
03 Joint link 2 31422314135 $127.91 +core
04 Lock Ring 1 31422311989 $2.39
05 Angular ball bearing 47X20X20,6 1 31422314723 +core
06 Bolt 1 31422314131 $45.60
07 Covering cap 1 31422314132 $3.64
08 Covering cap 2 31422314133 $2.80
08 Set of caps, milled 1 31427708547 $32.19
09 Support 28X20X7 1 31422314128 $6.12
11 O-ring 40X3 1 07119906054 $5.05
12 Badge D=45MM 1 51147667456 $39.65
Notes
  • +core = plus core charge (possibility of a return of the old part)
