259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Stanchion

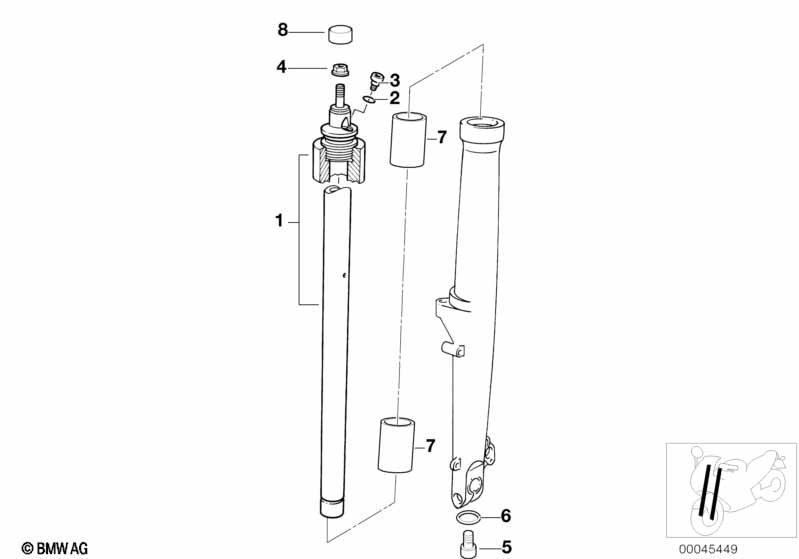

Stanchion
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Stanchion L=634MM 2 31422331224 $418.46 +core
02 O-ring 2 31422330054 $6.39
03 Fillister-head screw M4X10-8.8-ZN SW 2 07119919794 $2.58
04 Hex nut wiht flange M10X1,25-ZNS3 2 31427684743 $3.94
05 Fillister-head screw M8X18-8.8-ZNS3 2 31422312711 $1.39
06 O-ring 2 31422312714 $1.67
07 Pipe 8 31422311985 $16.54
08 Cap D=35MM 2 31422330541 $3.68
Notes
  • +core = plus core charge (possibility of a return of the old part)
