259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Handle unit left/single parts

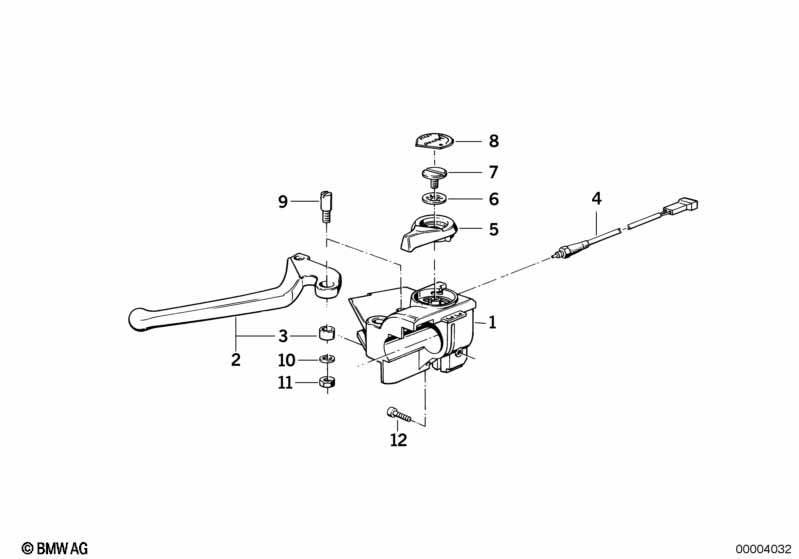

Handle unit left/single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Housing 1 32721457963 $75.45 +core
02 Hand lever, black, left 1 32721451700 $56.60
03 Bush 1 32721451796 $2.96
04 Switch 1 61311459569 $25.06 +core
05 Lever for choke 1 32721240792 $21.94 +core
06 Washer 1,200MM 1 32721240791 $1.97
07 Saucer-head screw M6X12 1 07119907430 $2.80
08 Cap 1 32721451975 $7.51
09 Screw M6 1 32721451749 $5.37
10 Wave washer 1 32721230871 $0.51
11 Nut, self-locking M6 1 32728532969
Notes
  • +core = plus core charge (possibility of a return of the old part)
