259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Handlebar

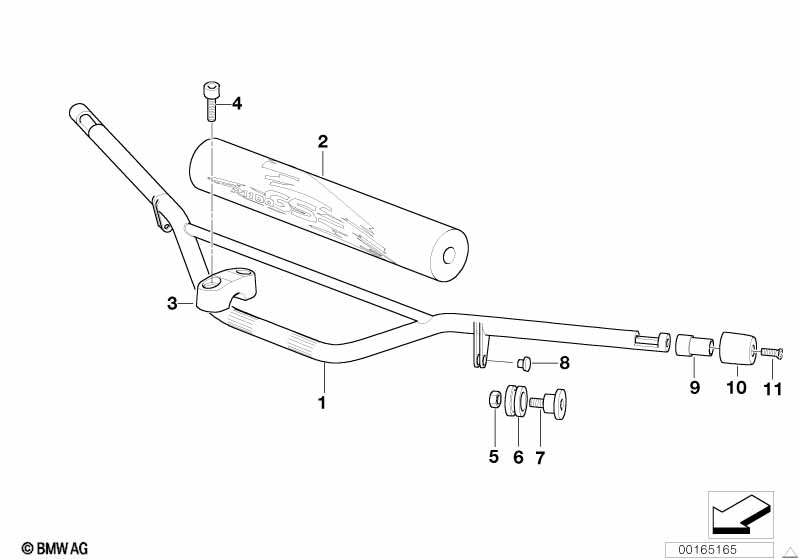

Handlebar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 High handlebar f heater handle 1 32712331876 $359.24 ENDED, +core
02 Cover f handlebar crossover 1 71607656988 $29.69
03 Clamp support, black, upper 2 31421458055 $49.35
04 Fillister-head screw M8X35-8.8-SW 4 31422312034 $1.42
05 Hex nut M5-10-ZNNIV SI 2 07119906520
06 Rubber grommet 2 32712331838 $8.03
07 Screw M5X10 2 32712331839 $13.26
09 Handle tube cover 1 32712330134 $15.11
10 Handlebar weight, black 2 32712313766 $38.10
11 Countersunk head screw M8X30 2 32712351511 $2.80
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
