259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Spring strut, rear

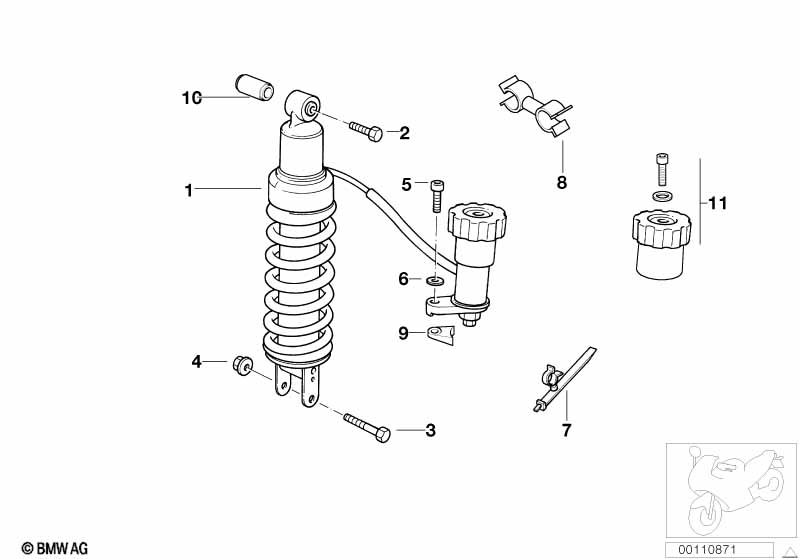

Spring strut, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Spring strut, rear 1 33532312103 $1073.96 +core
02 ASA-Bolt M10X1,25X60 1 33537676637 $22.64
03 Hex bolt M10X1,25X65 1 33532330374 $3.02
04 Hex nut M10X1.25-ZNNIV 2 07119907049
05 Fillister-head screw M8X30-8.8-ZNS 1 07119901025 $0.47
06 Washer 8,4 1 07119931697 $0.40
07 Hose clamp 1 13311707705 $1.78
10 Rubber Mounting 1 33532331785 $19.86
11 Handwheel for spring strut adjustment 1 33532345489 $24.42
Notes
  • +core = plus core charge (possibility of a return of the old part)
