259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Pressure modulator ABS

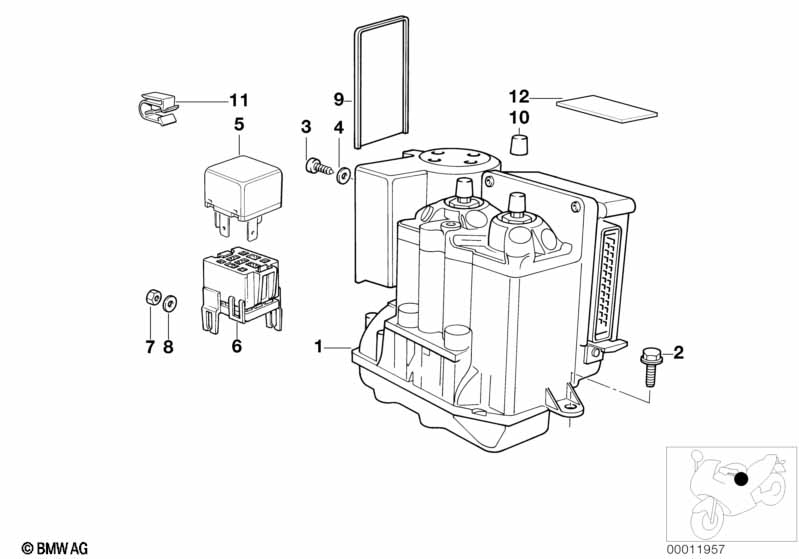

Pressure modulator ABS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY FOR REPAIR AT THE DEALER'S
01 Hydro unit 1 34512331935 $2564.53 +core
02 Fillister head with washer M6X14 2 34512335332 $2.03
02 Fillister head with washer M6X12-Z3-8.8 2 46632322460 $2.23
03 Self tapping screw 1 34512306436 $0.81
04 Wave washer B6 1 07119932099 $0.38
05 ABS motor relay 1 61362306526 $135.37 +core, SI 342193643
only in conjunction with
-- Cover 1 34512306317 $5.90
06 Relais base 1 61132306371 $83.45 +core
only in conjunction with
-- Cover 1 34512306317 $5.90
07 Hex nut M5-8-ZNNIV SI 1 07119905729
07 Hex nut M4 1 07119922821 $0.38
08 Tooth washer A4,3 1 07119936037 $0.36
08 Tooth washer A5,1 1 07119936107 $0.18
09 Cover 1 34512306317 $5.90
10 Protection cap 2 21521154976 $3.52
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
