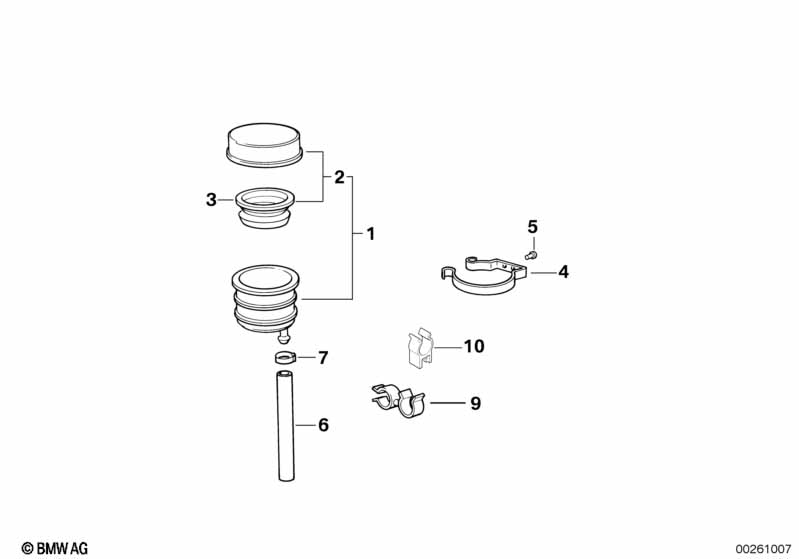

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Fluid container rear

Fluid container rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank 1 34312314082 $25.54 +core
02 Cover 1 34312314091 $16.40
03 Rubber cover 1 34312314092 $13.31
04 Bracket for brake fluid reservoir, rear 1 46512314312 $3.65
05 Blind rivet 3,2 2A 2 07129948747 $0.09
06 Hose 1 34321457880 $6.86
07 Hose clamp D=12,3MM 2 17111460922 $2.23
09 Hose clamp 1 11421338637 $3.22
Notes
  • +core = plus core charge (possibility of a return of the old part)
