259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Rear brake master cylinder

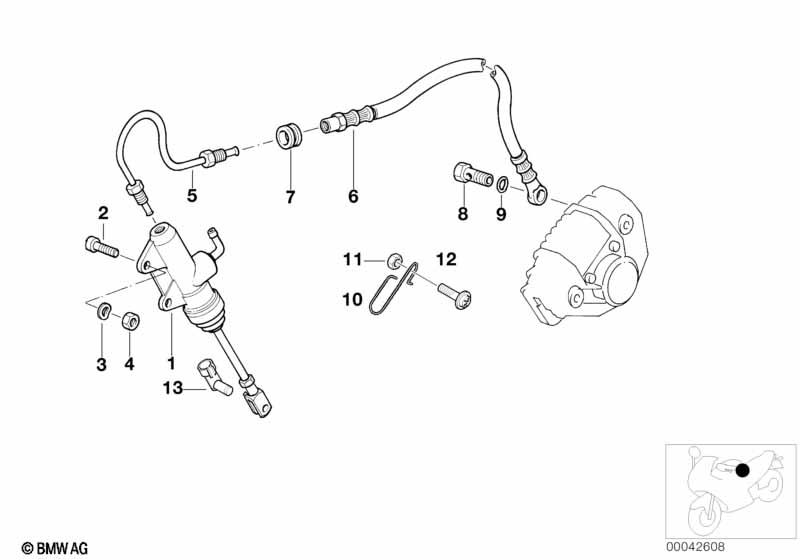

Rear brake master cylinder
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake master cylinder D=13MM 1 34312314726 $150.11 +core
02 ISA screw M6X25-8.8-ZNS3 2 07129903807 $1.74
03 Wave washer B6 2 07119932099 $0.38
03 Wave washer B6 2 07119932099 $0.38
04 Hex nut M6-8-ZNNIV SI 2 07129905817
For vehicles with
Anti block system (ABS)

X524A=No
05 Brake pipe 1 34322314774 $17.39 +core
06 Brake hose 1 34322314555 $73.78 +core
07 Grommet 1 34321236462 $2.80
08 Hollow bolt 1 34321242205 $4.47
09 Gasket ring A10X13,5-CU 2 07119963072 $0.11
10 Hose clamp 1 34322312894 $6.61 SI 342794677
11 Self-locking hex nut M6 1 07147153450 $0.47
12 ISA screw M6X25-8.8-ZNS3 1 07129903807 $1.74
13 Pin 6X12 1 07129934961 $3.19
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
