259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Brake pipe, front

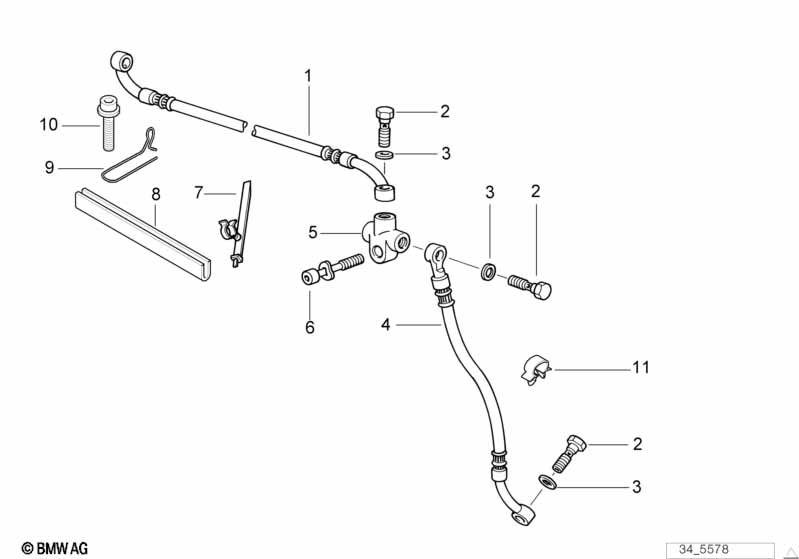

Brake pipe, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Anti block system (ABS)

X524A=No
01 Brake hose 1 34322314552 $88.54 +core
02 Hollow bolt 6 34321242205 $4.47
03 Gasket ring A10X13,5-CU X 07119963072 $0.11
04 Brake hose 2 34322314553 $67.19 +core
05 Distribution piece 1 34322314898 $25.06 ENDED
06 Fillister-head screw M6X25 1 11141460678 $0.87
07 Hose clamp 1 13311707705 $1.78
08 Edge protection L=110MM 1 34322331053 $2.23 SI 342794677
09 Bracket front 1 34322325202 $6.80
10 Fillister head with washer M6X12-Z3-8.8 1 46632322460 $2.23
11 Cable holder D=16,7MM 2 61131369668 $0.35
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
