259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Wheel hub mounting parts front

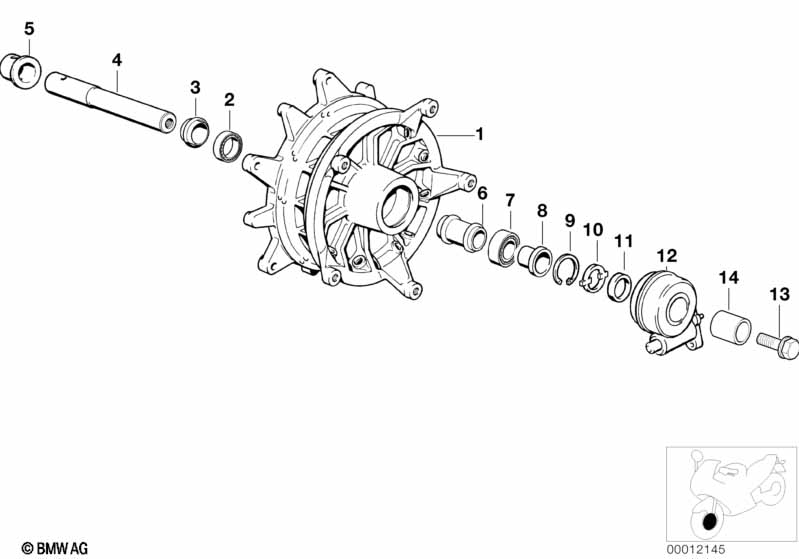

Wheel hub mounting parts front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
National version Austria
ONLY FOR REPAIR AT THE DEALER'S

Y743A=No
01 Wheel hub, front 1 36312314272 $478.28 ENDED, +core
01 Wheel hub, silver, front ABS 1 36319457388
02 Grooved ball bearing 20X47X14 1 36318534835
03 Bush 1 36312312513 $16.54
04 Quick-release axle 1 36312335577 $114.10 +core
05 Cap 1 36312314779 $2.80
06 Pipe L=58MM 1 36312312485 $11.28
07 Grooved ball bearing 25X52X20,6 1 36312310973
08 Bush left 1 36312312285 $12.91
09 Lock Ring 52X2 1 36312310971 $3.57
10 Driving dog 1 36312312286 $1.35
11 Shaft seal 1 36312312287 $11.77
12 Speedometer drive I=3,0 1 62122306287 $76.42 +core
13 Hex bolt M14X1.5 1 36317705315 $7.11
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
