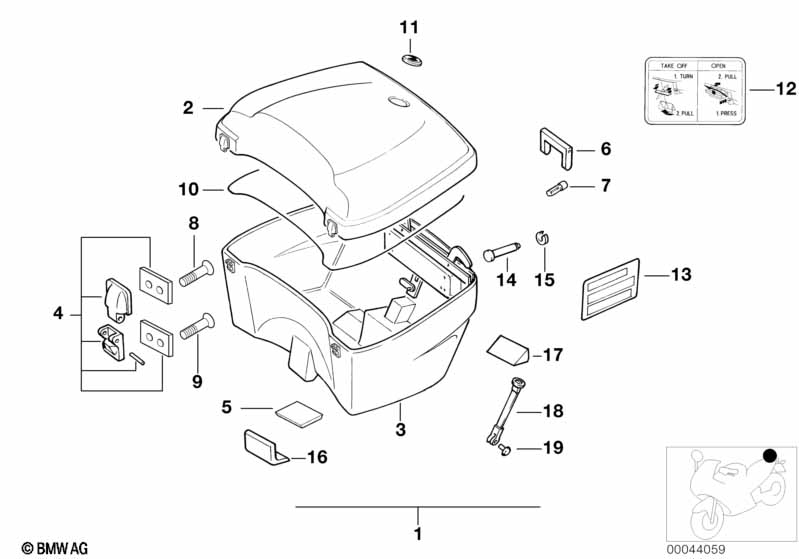

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Top Case 35l
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| not suitable for UNIFORM LOCKING SYSTEM |
|||||||||
| 01 | Top case with lock cylinder | 35L | 1 | 46542316287 | $551.94 | +core | |||
| only in conjunction with | |||||||||
| -- | Retrofit kit, Top Case bracket | 35 LTR. | 1 | 46542316645 | ENDED, +core | ||||
| only applies to | |||||||||
| -- | Standard key (code) | X | 51251233898 | $15.57 | |||||
| -- | Lock cylinder with key | X | 51251455109 | $30.00 | |||||
| 02 | Cover schwarz | 1 | 46542316288 | $206.34 | |||||
| 03 | Bottom part | 1 | 46542315613 | $433.14 | +core | ||||
| 04 | Hinge Top Case | 2 | 71607651217 | $19.06 | |||||
| 05 | Bump stop | 2 | 46542316319 | $7.19 | |||||
| 06 | Handle | 1 | 46542315616 | $22.19 | |||||
| 07 | Lock cylinder with key | 1 | 51251455109 | $30.00 | |||||
| 08 | Countersunk head screw | M5X16 | 4 | 07119910348 | $3.65 | ||||
| 09 | Countersunk head screw | M6X16 | 4 | 07119910350 | $3.65 | ||||
| 10 | Gasket | 1 | 46542316314 | $25.06 | |||||
| 11 | Badge | 1 | 46542300045 | $8.98 | |||||
| 12 | Label | 1 | 46542315908 | $6.82 | |||||
| 13 | Hinweisschild Zuladung Sitzplätze | 1 | 71212312802 | $12.89 | ENDED | ||||
| 14 | Pin | 2 | 46542316317 | $3.76 | |||||
| 15 | Circlip | 3,2 | 2 | 07119932815 | $0.11 | ||||
| 16 | Distance rubber | 1 | 46542316457 | $10.72 | SI 462492624 | ||||
| 17 | Stopper | 1 | 46542316315 | $2.86 | |||||
| 18 | Holding strap | L=180MM | 2 | 46542300441 | $12.95 | ||||
| 19 | Pin | 2 | 51161828956 | $0.48 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
