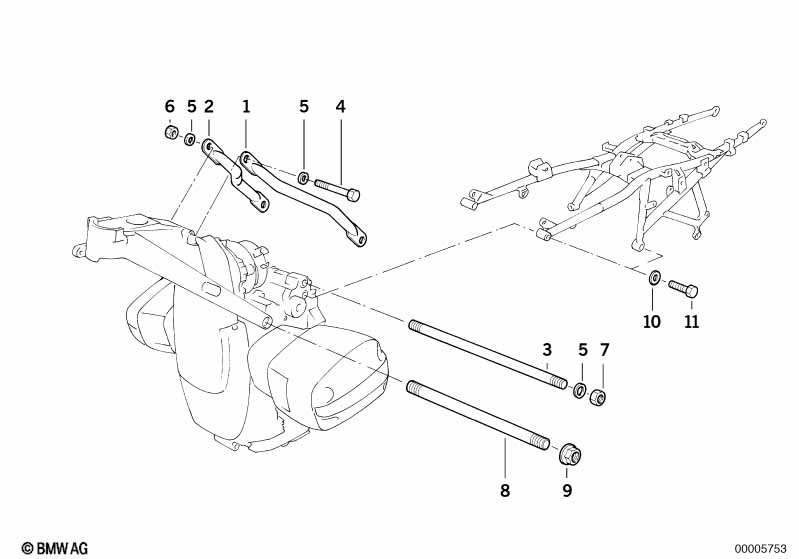

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Engine Suspension
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Rod left | 1 | 46512314271 | $61.41 | +core | ||||
| 02 | Rod right | 1 | 46512314322 | $38.39 | +core | ||||
| 03 | Pin | L=241MM | 1 | 46512314568 | $24.34 | ||||
| 04 | Hex bolt | M10X125-10.9 | 1 | 07119900556 | $4.49 | ||||
| 05 | Washer | ZNS3 | 4 | 12/2002 | 07119904198 | $0.45 | |||
| 05 | Washer | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | ||||
| 07 | Hex nut | M10 | 2 | 07119907088 | |||||
| 08 | Pin | 10.9 | 1 | 46512314567 | $24.34 | ||||
| 09 | Hex nut | M12-10-ZNS3 | 2 | 07119901589 | $2.06 | ||||
| 10 | Washer | 10-200HV-ZNNIV | 4 | 07119907114 |
Notes
- +core = plus core charge (possibility of a return of the old part)
