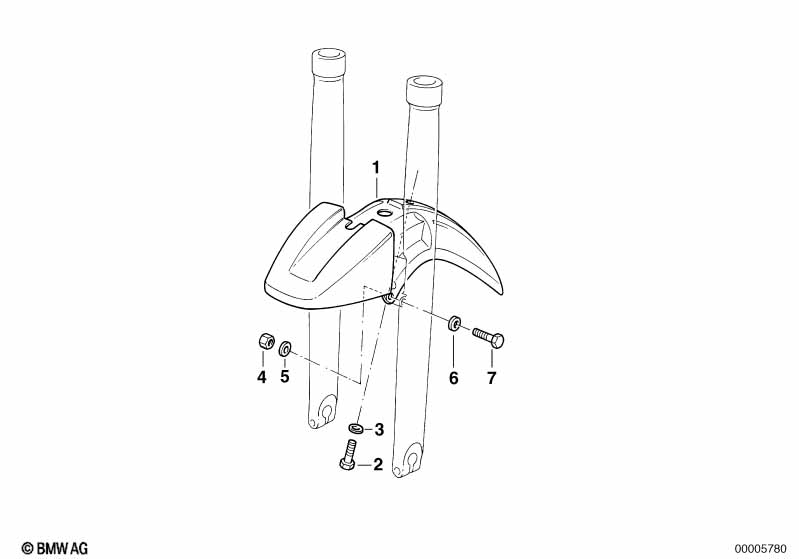

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Lower mudguard

Lower mudguard
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Extended lower mudguard 1 46612324395 $52.51 +core
02 Hex bolt M6X12-8.8-ZNNIV 1 07119905524 $0.27
03 Washer 6-200 1 07119904427 $0.21
04 Hex nut M6-8-ZNNIV SI 2 07129905817
05 Washer A6,4-ZNNIV SI 2 07119904202
06 Washer 6,4 2 07119931696 $0.40
07 Fillister-head screw M6X18 2 46542322498 $0.60
Notes
  • +core = plus core charge (possibility of a return of the old part)
