259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Windshield mounted parts

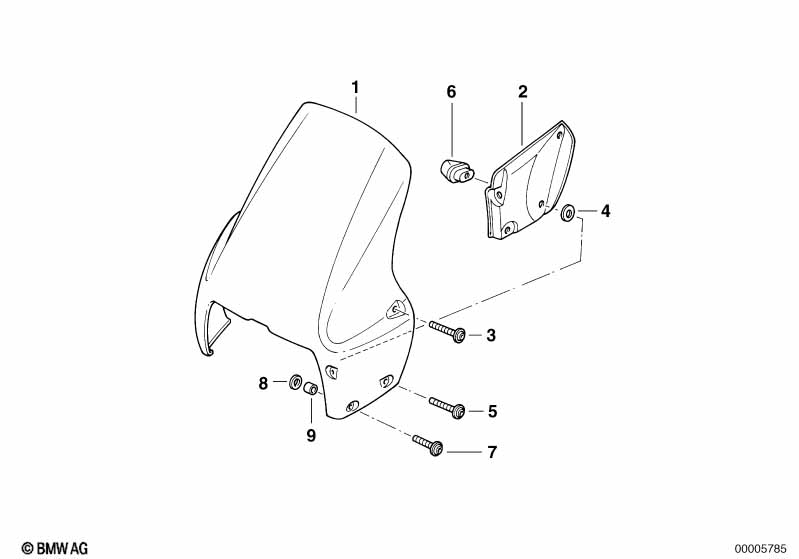

Windshield mounted parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Windshield, brown 1 46632313258 $180.50 +core
02 Bracket left 1 46632313601 $12.91
02 Bracket right 1 46632313602 $12.91
03 Fillister head screw M5X12 4 46632351500 $2.80
04 Rubber washer 2 46632313611 $0.84
05 Fillister head screw M6X35 2 46632351519 $2.93
06 Clamping 2 46632451255
08 Washer 6,4 2 07119936408 $0.40
09 Spacer bush 2 16111450706 $1.94
Notes
  • +core = plus core charge (possibility of a return of the old part)
