259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Fairing side section

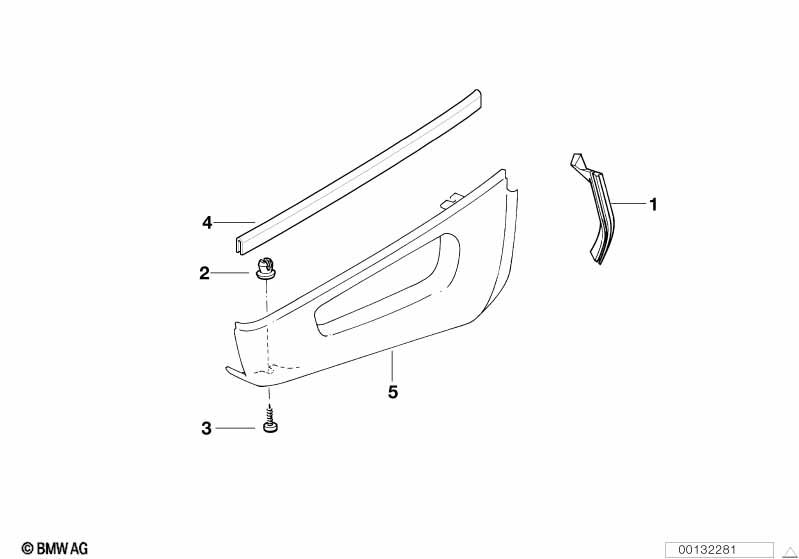

Fairing side section
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Support f left sheet-steel fuel tank 1 46632324873 $7.12
01 Support f right sheet-steel fuel tank 1 46632324874 $7.12
02 Expanding nut 4 46637667284 $2.80
03 Sheet metal screw 3,5X13-Z2 4 07119900474 $0.55
04 Edge protection L=110MM 1 34322331053 $2.23 SI 342794677
05 Lateral trim panel left SILBER 1 46632313895 $132.55
05 Lateral trim panel right SILBER 1 46632313896 $132.55
Notes
  • SI = Service Information
