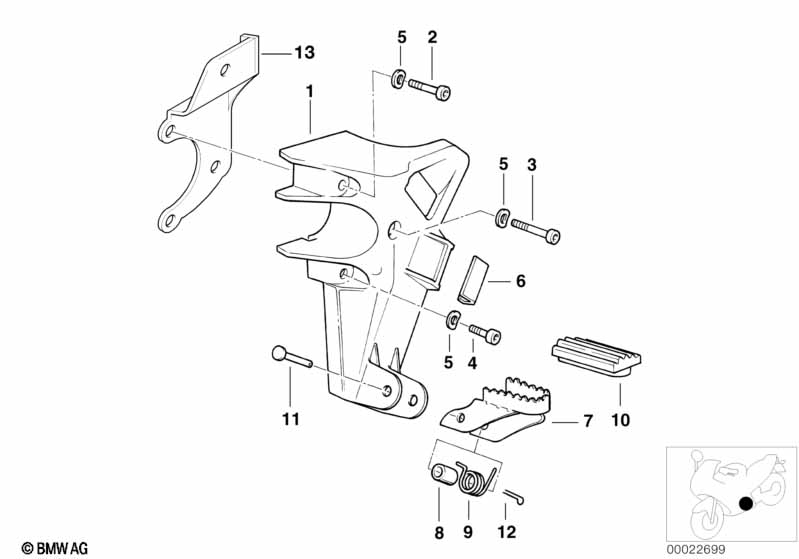

259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Footpeg plate/Front footpeg

Footpeg plate/Front footpeg
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Footpeg plate right 1 46712314246 $220.97 +core
For vehicles with
National version Australia
or
National version Brazil
additionally required parts:
Pos.: 2,3 + 13

Y734A=Yes

Y739A=Yes
01 Footrest plate, left 1 46712325991 +core
For vehicles with
National version Australia
and
National version Brazil

Y734A=No

Y739A=No
01 Footrest plate, left 1 46712314245 $220.97 +core
ONLY APPLIES TO
FOOTPEG
02 Fillister-head screw M8X35 ZNS 2 07119901027 $1.22
For vehicles with
National version Australia
or
National version Brazil
ONLY APPLIES TO
FOOTPEG

Y734A=Yes

Y739A=Yes
02 Fillister-head screw M8X45-8.8 2 07119901033 $1.19
ONLY APPLIES TO
FOOTPEG
03 ISA screw M8X55-8.8-ZNNIV 1 07129906694
For vehicles with
National version Australia
or
National version Brazil
ONLY APPLIES TO
FOOTPEG

Y734A=Yes

Y739A=Yes
03 ISA screw M8X60 ZNS3 1 07129904502 $2.80
ONLY APPLIES TO
FOOTPEG
04 ISA screw M8X25-10.9-ZNS3 3 07129904477 $2.00
05 Washer 8,4 6 07119931697 $0.40
06 Stop buffer 1 46712314721 $9.76
07 Footrest, left 1 46717729281 +core
07 Footrest, right 1 46717729282 +core
08 Spacer tube 2 46711242019 $1.94
09 Spring 2 46711242020 $3.19
10 Footrest rubber 2 46711242109 $9.97
11 Pin 2 07119900585 $6.55
12 Split pin 2X16 2 07119905230
For vehicles with
National version Australia
or
National version Brazil
additionally required parts:
Pos.: 1, 2 + 3

Y734A=Yes

Y739A=Yes
13 Reinforcement plate RECHTS 1 46512325860 $85.46
13 Reinforcement plate LINKS 1 46512325946 $85.46
Notes
  • +core = plus core charge (possibility of a return of the old part)
