259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Footpeg plate/Rear footpeg

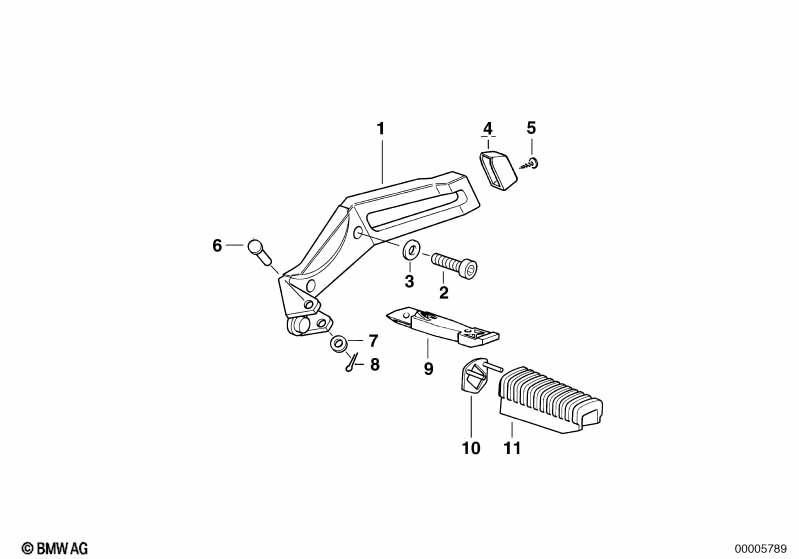

Footpeg plate/Rear footpeg
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Footrest plate, left SCHWARZ 1 46712314761 $81.50 +core
01 Footpeg plate right SCHWARZ 1 46712314762 $76.92 +core
02 ISA screw M8X16 4 07129905214 $0.53
03 Washer 8,4 4 07119931697 $0.40
04 Cap 2 46542316012 $5.13
05 Self tapping screw CM4X10 4 07119900439 $0.82
06 Pin 8X45 2 07119900584 $4.66
07 Washer 8,4 2 07119931697 $0.40
08 Split pin 2X16 2 07119905230
09 Footrest, rear left 1 46712310403 $40.75 +core
09 Footrest, rear right 1 46712310404 $32.60 +core
10 Thrust washer, left 1 46717687107 $3.35
10 Thrust washer, right 1 46717687108 $3.35
11 Footrest rubber 2 46712310401 $13.26
Notes
  • +core = plus core charge (possibility of a return of the old part)
