259 (R 850 GS, R 1100 GS) R 850 GS 95 (0403) Retrofit kit, plastic safety bar

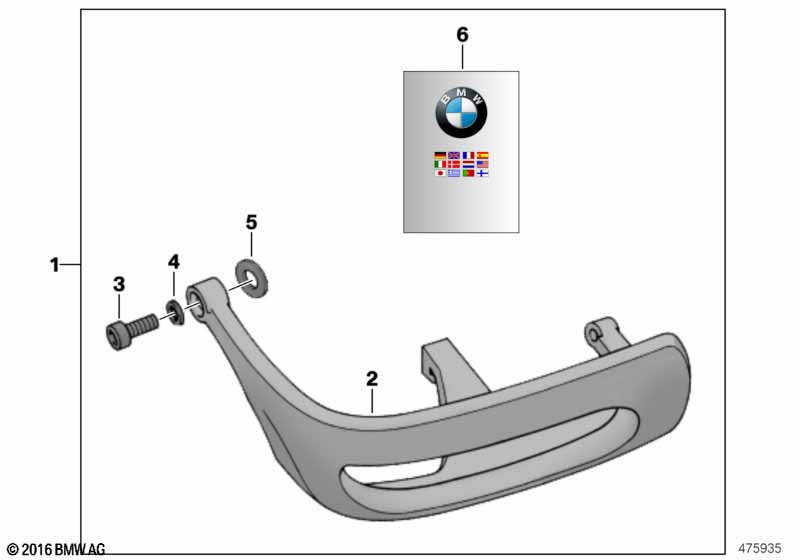

Retrofit kit, plastic safety bar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Set cyl. protection brackets, plastic 1 46712316487 $152.34 ENDED, +core
02 Safety bar, left 1 46712316485 $86.04 +core
02 Safety bar, right 1 46712316486 $67.67 +core
03 ISA screw M6X25-8.8-ZNS3 4 07129903807 $1.74
03 ISA screw M6X16-8.8-ZNNIV 2 07129905536 $0.64
04 Wave washer B6 6 07119932099 $0.38
05 Washer 6,4 6 07119931696 $0.40
06 Installation instructions, safety bar 1 01299797366
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
